SYS-GRP AnchorPod Guide & FAQ

At-a-glance

  • Works with: 20 mm and 3/4 in dog-hole systems; smooth, flat, low-porosity tops
  • Best results on: Rigid benches and plates; triangulated multi-pod layouts for larger parts
  • Not recommended: Highly porous or uneven tops; high side-load machining without secondary restraint
  • Key links: Vacuum sources • SYS-GRP Hub • Warranty

1) Getting started

  • What is AnchorPod, in one sentence?

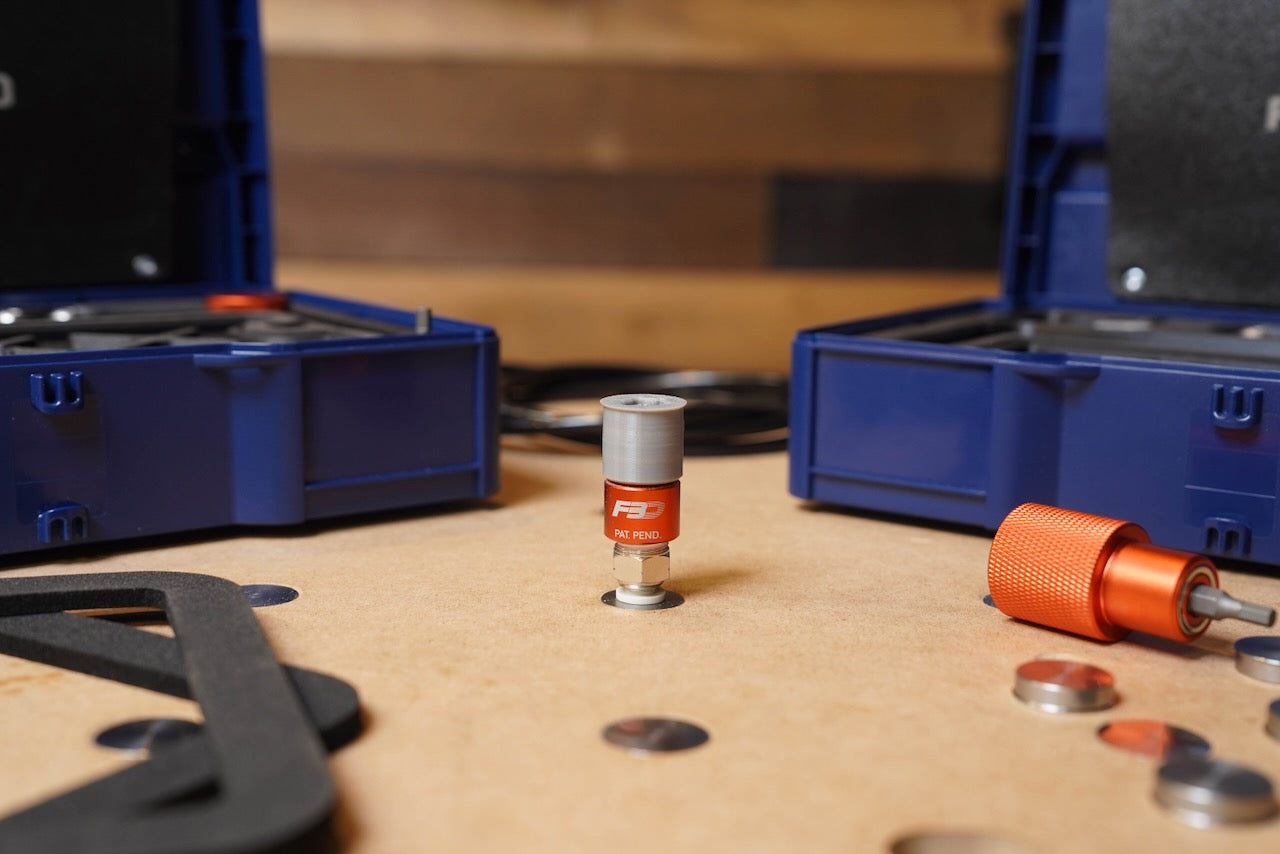

    AnchorPod is a precision vacuum workholding pod that anchors flat parts quickly and repeatably so you can stage, sand, finish, or machine without clamps getting in the way.
  • What comes in the box?
    • SYS-GRP AnchorPod Core — Standalone AnchorPod (20 mm or 3/4 in variant) for custom setups. Use with your own gasket material and vacuum source, or pair with AnchorPod Edition pods.
    • SYS-GRP AnchorPod Foundation — Everything to get started:
      • (1) AnchorPod (20 mm or 3/4 in)
      • (2) Gaskets + spacers
      • 1500 mm vacuum tubing
      • T-handle or 4 mm hex installation tool
      • PE foam insert (fits Systainer³ S 76)
    • FORG3D Edition — Magnus Config (example)
      • (1) SYS-GRP AnchorPod — 20 mm
      • (1) AnchorPod Edition Magnus Pod
      • (1) SYS-GRP Argos — bench driver (stores in a 20 mm dog hole)
      • (4) SYS-GRP AnchorDogs — 20 mm dogs
      • (2) SYS-GRP BenchPups — low-profile 20 mm dogs
      • (1) Systainer³ S 76 with precision fitout
      • (4) Pod balancing spacers, EPDM foam gasket + balancing elements, PU tubing + fittings
    • FORG3D Edition — Maximus Config (example)
      • (2) SYS-GRP AnchorPods — 20 mm
      • (2) AnchorPod Edition Maximus Pods
      • (1) SYS-GRP Argos
      • (2) SYS-GRP AnchorDogs — 20 mm
      • (1) Systainer³ S 76 with precision fitout
      • (2) Pod balancing spacers, EPDM foam gasket + balancing elements, PU tubing + fittings
  • What tools do I need to install it?
    A 4 mm hex tool or our Argos bench driver seats the additive upper against the dog hole to promote a reliable vacuum seal. You’ll also need a compatible vacuum source and hose.
  • Where can I use it: bench, cart, job site?
    Any stable, flat surface with true 20 mm or 3/4 in dog holes in good condition. Note: Worn, oversized, or damaged holes can compromise the seal; verify fit before use.

2) Compatibility

  • What surfaces are compatible?
    Smooth, flat, low-porosity surfaces yield the strongest hold. Highly porous, soft, or uneven tops reduce or impede holding power.
  • Does AnchorPod work with MFT 20 mm grids, 3/4 in grids, and bench dogs?
    Yes. Use dogs or blocks as anti-rotation or edge references while AnchorPod provides vacuum down-force. It complements mechanical dogs and indexing workflows.
  • Will it work on perforated tops or plywood? What changes?
    On perforated or plywood tops, sealing depends on finish and hole layout. Use a non-perforated spoilboard or plate under the gasket or temporarily seal adjacent holes to prevent leakage.

3) Installation & setup

  • How do I mount AnchorPod on a flat surface? Step-by-step.
    1. Remove dust and debris from the surface and pod face.
    2. Pick your dog hole. Route the vacuum hose down through the hole or up from below—your preference.
    3. Connect the vacuum hose to the pod’s push-to-connect fitting.
    4. Place AnchorPod in the selected dog hole.
    5. Tighten the internal M6 bolt with a 4 mm hex (or use Argos) to seat the upper against the dog hole wall.
    6. Connect the other end of the hose to your vacuum or pump.
    7. Power on the vacuum.
    8. Place the gasket or an AnchorPod Edition pod on top of AnchorPod.
    9. Apply vacuum.
    10. Verify the hold before cutting or finishing.
  • How do I connect vacuum? Hose size and fittings.
    Supported via push-to-connect adapters. Refer to our vacuum source guidance for more information: Vacuum Source Guide.
  • How do I position multiple pods for larger parts?
    Place gaskets or pods under load paths and edges to prevent racking. Triangulate for rectangles; add additional AnchorPods for heavy or long parts. Use spacers near edges to keep parts from sagging and breaking the seal.
  • How do I check for a good seal?
    Ensure the part lies flat on the gasket; listen for leaks. If available, check gauge stability. Lightly test for movement—there should be no slip before you begin.

4) Performance & specs

  • Typical holding force
    Depends on vacuum level, surface, and seal contact area. Suitable for staging, sanding, finishing, routing, and machining.
  • Recommended max workpiece size or weight
    Use as many AnchorPods as needed to distribute load and resist torque. One for small to medium panels; two-point support for medium; three to four for large or heavier parts.
  • Materials and temperature limits
    Gaskets work with common woods, plastics, and non-abrasive metals. Avoid hot surfaces, solvents, or sharp edges contacting the gasket.
  • Noise level and airflow
    Refer to our vacuum source guidance for typical airflow and noise characteristics: Vacuum Source Guide.

5) Vacuum & power

  • What vacuum sources are compatible?
    See our recommended vacuum sources and fittings: Vacuum Source Guide.
  • Minimum vacuum recommended
    Refer to examples in our guide: Vacuum Source Guide.
  • Do I need a regulator or valve?
    Use an inline valve to apply or release vacuum smoothly. A release valve helps; pairing with the SYS-GRP Hub improves speed and control: SYS-GRP Hub.
  • How to keep gaskets effective
    Keep contact surfaces dust-free; wipe gaskets after use. Add an inline filter ahead of the vacuum pump to protect the pump.

6) Use cases & techniques

  • Best practices for small vs large parts
    Small: a single AnchorPod may suffice—avoid aggressive side-loads or large moments. Large: add AnchorPods at corners and mid-spans; use a fence or rail for alignment.
  • Preventing racking or rotation
    Triangulate pod placement and add a mechanical stop. Reduce aggressive side-loads with lighter passes.
  • Finishing, sanding, machining
    Do clean surfaces, test the hold, and take reasonable passes. Don’t pry sideways against the seal.

7) Safety

  • Not recommended operations
    High side-load cuts, prying operations, or heavy machining without secondary restraint. Always test before committing to a cut.
  • PPE and safe release
    Wear eye and hearing protection. Support the work while venting vacuum to prevent sudden movement.
  • Test before starting
    Try to move the piece lightly. If there’s slip or an audible leak, stop and re-seat.

8) Maintenance

  • Cleaning routines
    Routinely clear dust from the upper; keep the sealing surface free of chips.
  • Replacing gaskets or wear components
    Gaskets are consumables—replace when wear or damage appears.
  • Storage
    Store so the upper isn’t damaged. Avoid imprinting or creasing gaskets on hard edges. Use a SYS-ORG bin or FORG3D Edition storage where available.

9) Troubleshooting

  • AnchorPod won’t hold
    Check for debris, surface porosity, or warping. Improve flatness, add an AnchorPod Edition pod, or increase vacuum.
  • Workpiece slipping
    Add a stop or fence; increase pod count; reduce side-load; ensure surfaces are clean and dry.
  • Vacuum underperforms
    Check filters, hose length or leaks, and connections; confirm the source meets minimum vacuum.

10) Ordering, warranty, and support

  • Where to buy and lead times
    Order via the FORG3D store. Lead times may vary during launch periods—see product page.
  • Warranty
    Covered by FORG3D’s standard warranty. View details.
  • Returns and support
    Use the store contact form or your order confirmation email to initiate an RMA.

FAQ

  • What surfaces work best?
    Smooth, flat, low-porosity tops deliver the strongest seal.
  • Do I need bench dogs for AnchorPod to work?
    No. Dogs are optional for indexing or efficiency.
  • How many AnchorPods should I use?
    Use more pods to distribute load and resist torque.
  • Can I use AnchorPod on perforated or plywood tops?
    Yes, with adjustments. Use a spoilboard or seal adjacent holes.
  • How do I check that I have a good seal?
    Ensure the work lies flat on the gasket, listen for leaks, and lightly test for movement.
  • What vacuum sources are compatible?
    See our recommendations: Vacuum Source Guide.
  • Do I need a valve to control vacuum?
    An in-line release valve improves control; pairing with the SYS-GRP Hub streamlines operations.
  • How do I keep performance consistent?
    Keep surfaces clean, wipe gaskets, and add an inline filter ahead of the pump.
  • What if the part slips during an operation?
    Add a stop or fence, increase pod count, and reduce side-loads.
  • Where do I find warranty details?
    Covered by FORG3D’s standard warranty. View details here.
