SYS‑GRP bundles exist to remove guesswork. Verso optimizes reach and fast re‑staging across horizontal and vertical orientations. Max optimizes synchronized horizontal holding power for larger panels. Both dock into the broader system so setup becomes alignment, not improvisation. Verso + Max Sets: Built on Your Feedback
Why these bundles exist
If your bench alternates between quick orientation changes and big flat panels, you don't need two philosophies. You need a starting bundle that matches your dominant task, then expands with the rest of SYS‑GRP as your work evolves.
Vacuum workholding, in brief
Vacuum workholding turns surface area into usable holding force. The rule of thumb is simple: more sealed area equals more hold. With SYS‑GRP pods, the seal is made to the work piece (via the pod's gasketed face), not to the bench surface. Rails or bench provide support and indexing; the pod face provides the vacuum seal to the part. For irregular geometry or when you need a hard mechanical stop, hybrid lock‑in with AnchorDogs is supported on 20 mm/MFT.
Verso and Max bundles use vacuum pods — part of the SYS‑GRP workholding family — as the core interface. Pods index to your grid on the bench or rail, then seal against the work piece. Pair with rails, plates, and dogs to mix vacuum and mechanical restraint as the task demands.
Verso and Max at a glance
| Bundle | Best for | Orientation strength | Setup style | Optimizes |
|---|---|---|---|---|
| Verso | Mixed tasks with frequent orientation changes | Horizontal + Vertical (rails) | Stage pods on rails; keep extras free for bench | Reach, fast re‑staging, versatility |
| Max | Larger panels and higher horizontal holding needs | Horizontal first (vertical optional) | Bench‑centered pod arrays | Scaled grip, synchronized layouts |
How to choose in three steps
Use this quick filter to land on the right starting point.
- Surface and grid: a 20 mm/MFT bench with rails nearby points to Verso. A bench‑first setup handling large flat panels with minimal rail work points to Max.
- Dominant operations: frequent edge work, panel support, and angled setups in the same day favor Verso. Batch cutting or glue‑ups on wide support fields favor Max.
- Staging preference: if you like pods staged and ready on rails, Verso fits. If you prefer pods arrayed on the bench as a stable "platform," choose Max.
If you're between the two, start with the one that fits your most common day and expand from there.
Configuration guidance
Verso (the all‑arounder)

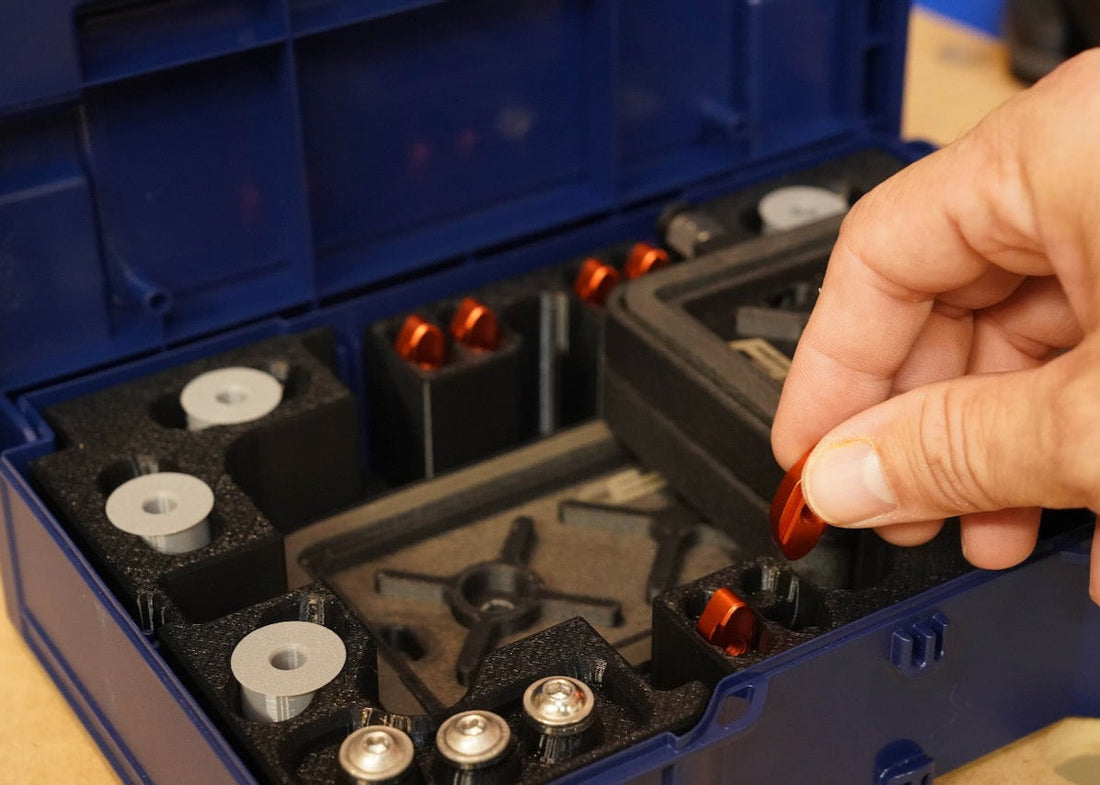

Stage pods along rails for fast swaps and keep extra pods free for bench positioning. Verso suits days when you flip between edge routing, panel support, and vertical work. For storage, leave pods staged on rails or slide them into the FORG3D Edition Systainer via a PodDock layout. Verso + Max Sets: Built on Your Feedback
Max (the powerhouse)
Build synchronized pod arrays across the bench to stabilize larger or heavier panels. Keep vertical on rails available when the task demands it—same pods, same accessories. Storage and mobility are handled by the same Systainer + PodDock structure.
Field scenarios
Setup matters; here are common patterns and starting points.
- Mostly panels on the bench with occasional rail work → Start Max; add a small rail insert kit when needed.
- Daily mix: edge routing on rails, then panel glue‑ups on the bench → Start Verso; keep extra bench pods in the Systainer.
- Tight space and frequent re‑staging → Verso with rail‑staged pods reduces teardown time.
- Batch‑cutting large sheets → Max with synchronized arrays keeps alignment consistent between operations.
Why bundles now
Makers asked for less guesswork and faster first setups. Verso and Max extend the thinking behind Launch Edition: pair the right pieces to demonstrate the system's potential immediately, then expand modularly as needs evolve. Verso + Max Sets: Built on Your Feedback
FAQs
- Do these replace clamps?
No. Vacuum removes setup drag for flat geometry; hybrid lock‑in with AnchorDogs is supported for 20 mm/MFT.
- Can I run both horizontal and vertical?
Yes. Verso is built for mixed orientation. Max is horizontal‑first but can run vertical on rails when needed.
- Are bundles upgradeable?
Yes. Start where your dominant work needs are today and add pods, rails, plates, or fitouts as your use cases grow.
Glossary
- 20 mm/MFT grid — common bench standard for dog‑based location
- AnchorDog — mechanical lock for 20 mm/MFT alignment
- Pod array — coordinated pod layout for synchronized holding
- PodDock — Systainer fitout for organized, quick‑access storage
See the system
Explore Verso and Max in SYS‑GRP context alongside AnchorPod, Argos, and AnchorPlug in the Store, then choose the starting point that fits your surface, dominant operation, and staging preference.
