SYS-GRP AnchorPod — Precision-Engineered Workholding Solution

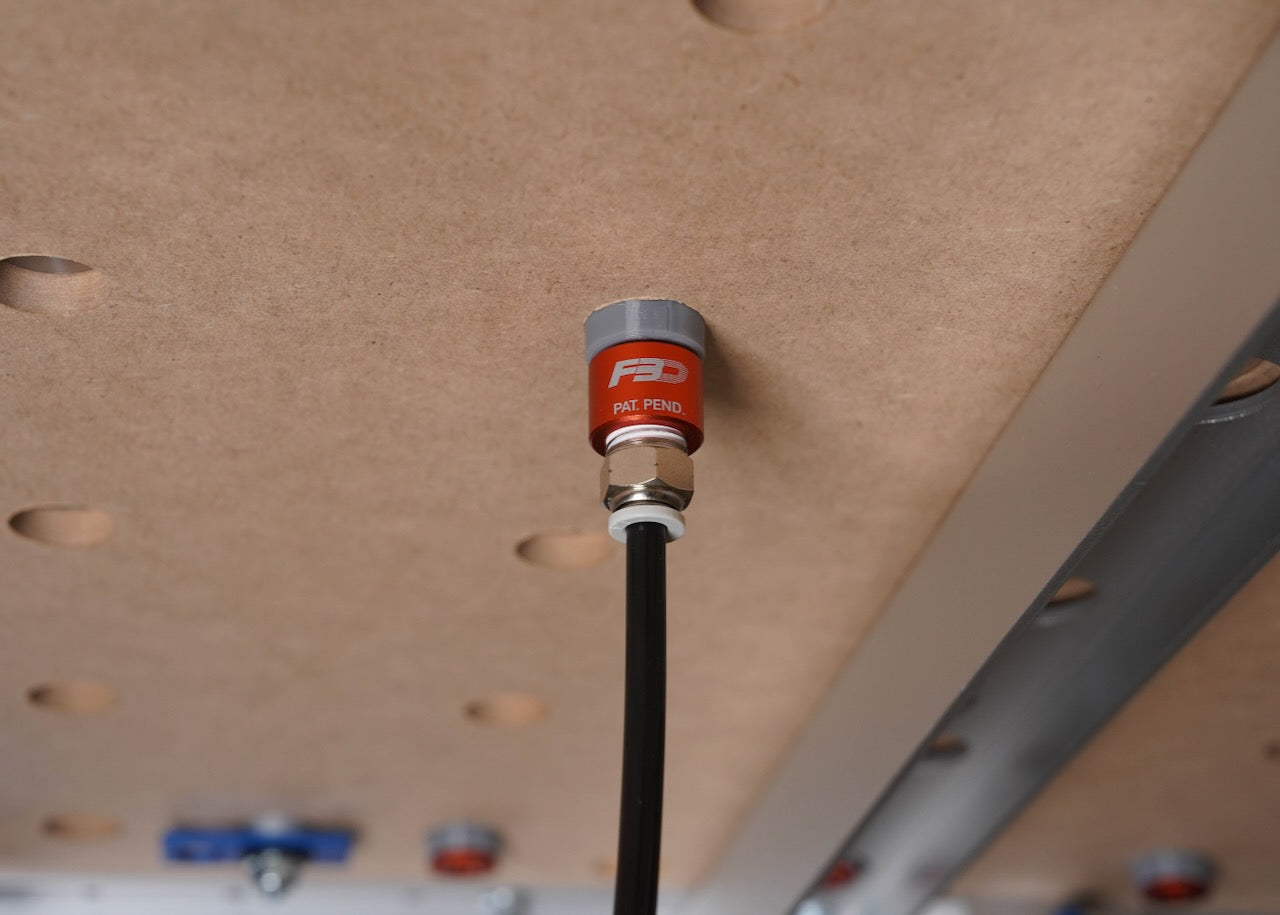

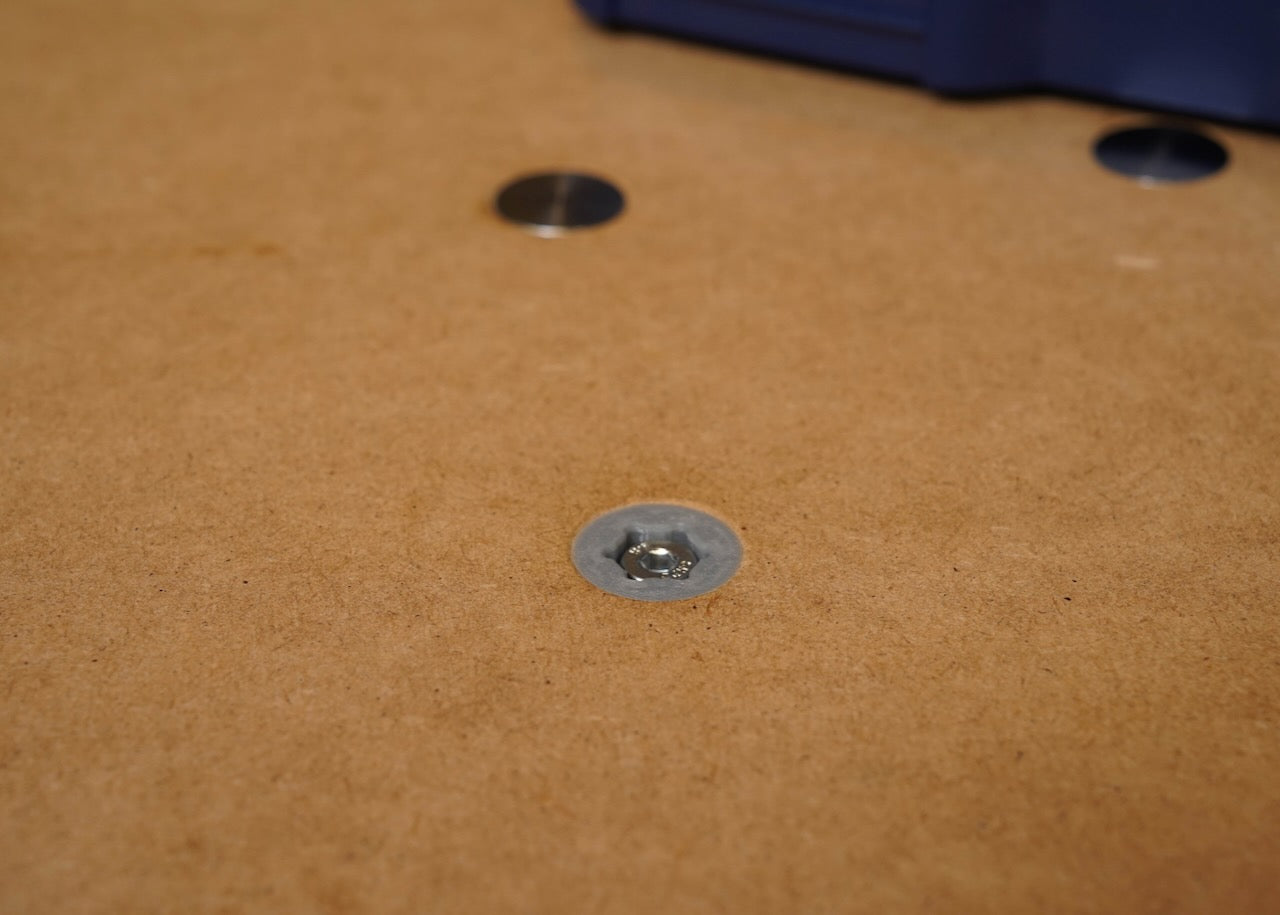

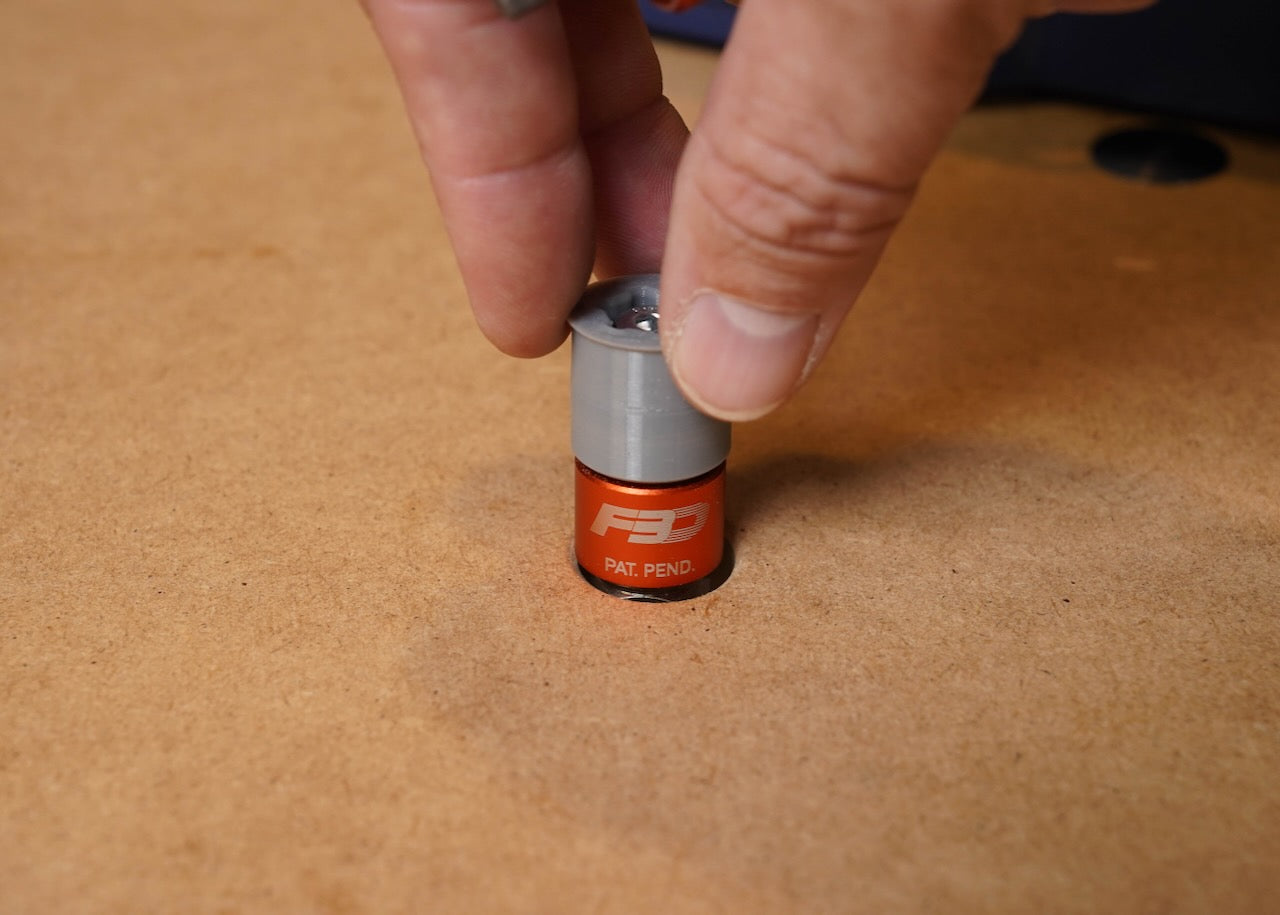

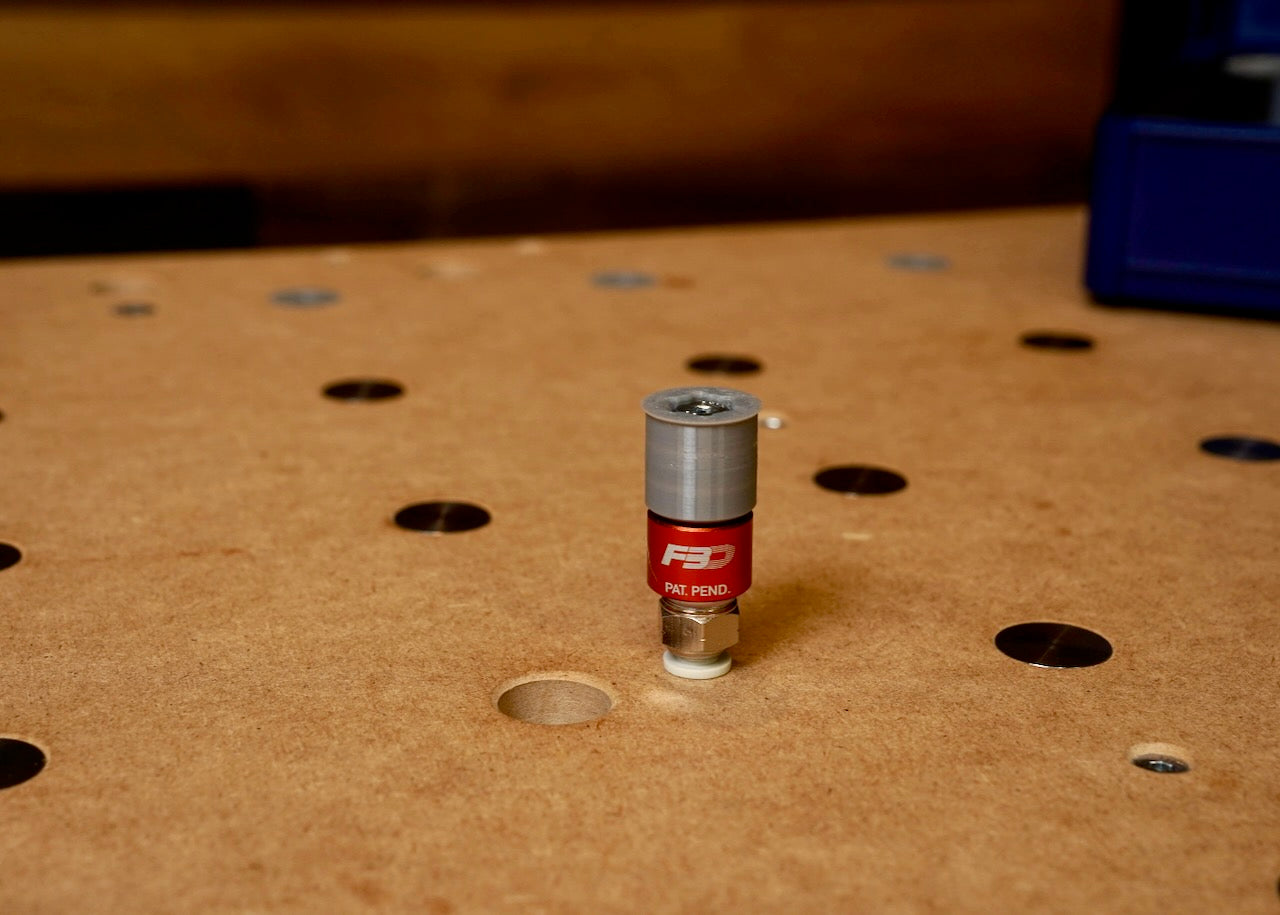

AnchorPod puts the workholding inside the bench — a patent‑pending vacuum anchor that drops into your 20 mm (MFT) or 3/4 in dog hole so the surface stays clear and the setup stays repeatable.

SYS‑GRP AnchorPod is built for makers who are tired of clamps and top‑mounted pods getting in the way of toolpaths and workflow. It combines benchdog‑style mechanical anchoring with gasket‑sealed vacuum holding, then scales into pod integration when you want elevation, coverage, or modular arrays.

Build Your System

AnchorPod is offered as Core (the platform) or Foundation (the ready‑to‑run starter kit). Pick Core if you’re building around existing vacuum hardware and you want maximum flexibility; pick Foundation if you want the sealing, spacing, and hose management handled up front so you can get to first hold fast.

SYS‑GRP AnchorPod Core

Core is the bench‑integrated AnchorPod platform for builders who want to design their own setup. Choose your surface standard (20 mm or 3/4 in), install it in the grid, then configure the workflow you need: mechanical anchoring for repeatable registration, gasket‑sealed vacuum holding for clear toolpaths, or pod integration when you want elevation and modular arrays.

If you already run a vacuum source, have preferred gasket material, or you’re dialing in a dedicated jig, Core keeps the system open and lets you tune performance around your bench and materials.

• (1) AnchorPod base (20 mm or 3/4 in variant)

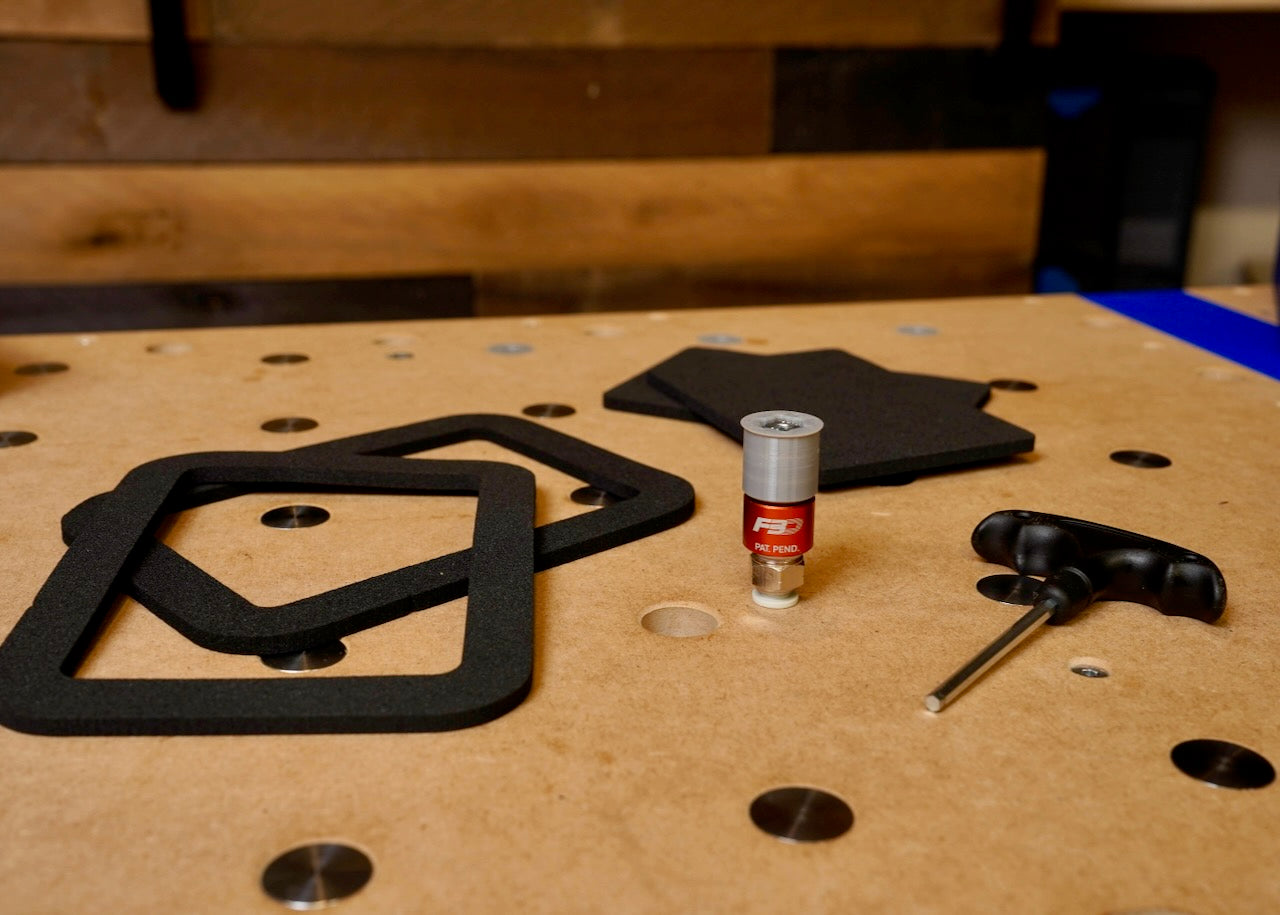

SYS‑GRP AnchorPod Foundation

Foundation is the fastest path to a clean, repeatable AnchorPod workflow. It includes the sealing and setup components that make vacuum workholding feel predictable — so you can mount the anchor, dial the seal, and start holding parts without hunting for the right gasket stock or hose routing.

Choose Foundation when you want to validate the system quickly, standardize your setup across benches, or you’re building toward future pod integration with a known‑good baseline.

• (1) AnchorPod base (20 mm or 3/4 in variant)
• (2) Gaskets + spacers

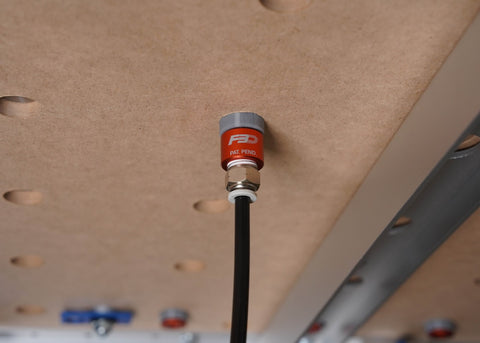

• 1500 mm vacuum tubing

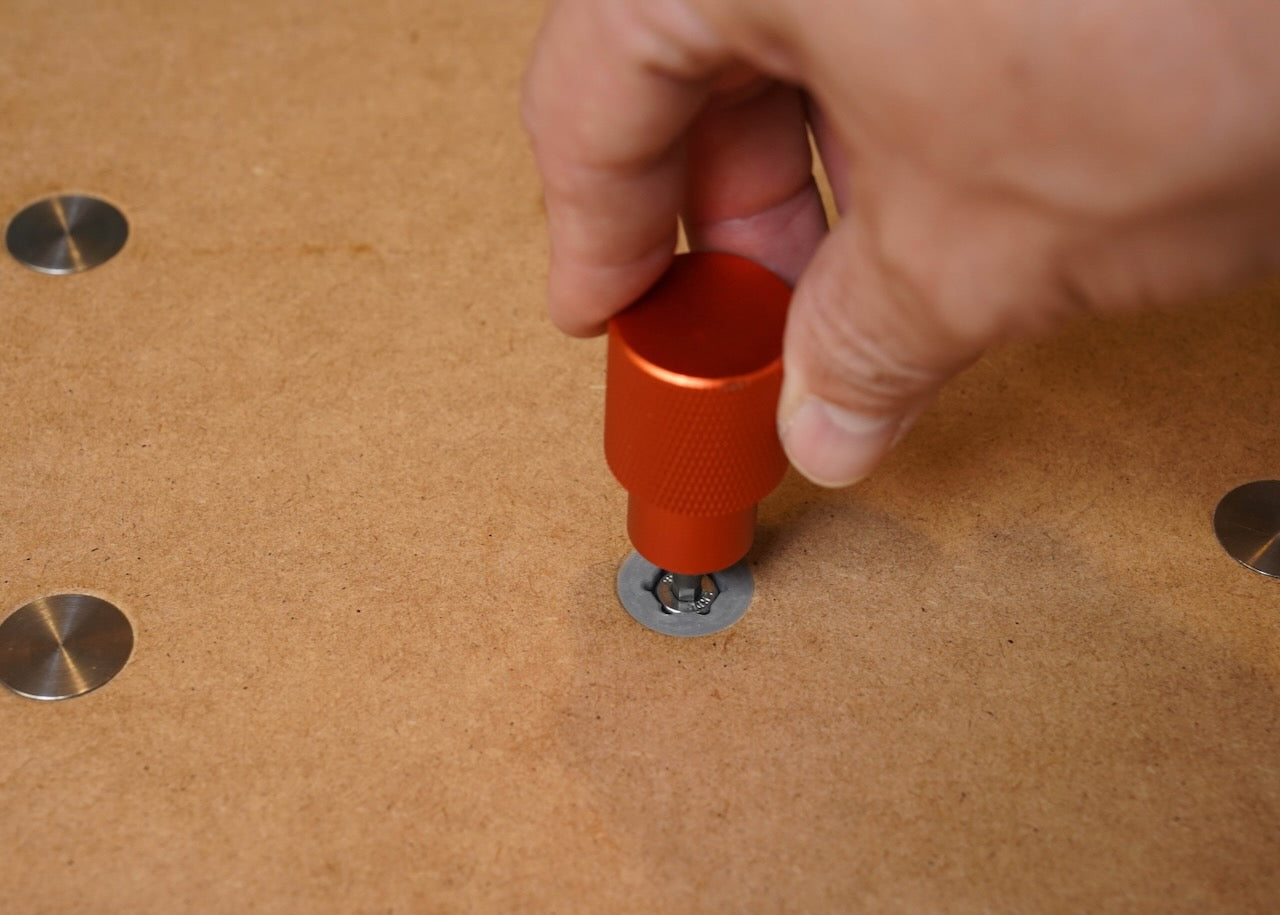

• T-handle installation tool
• PE foam insert sized for a Systainer³ S 76

Key Features

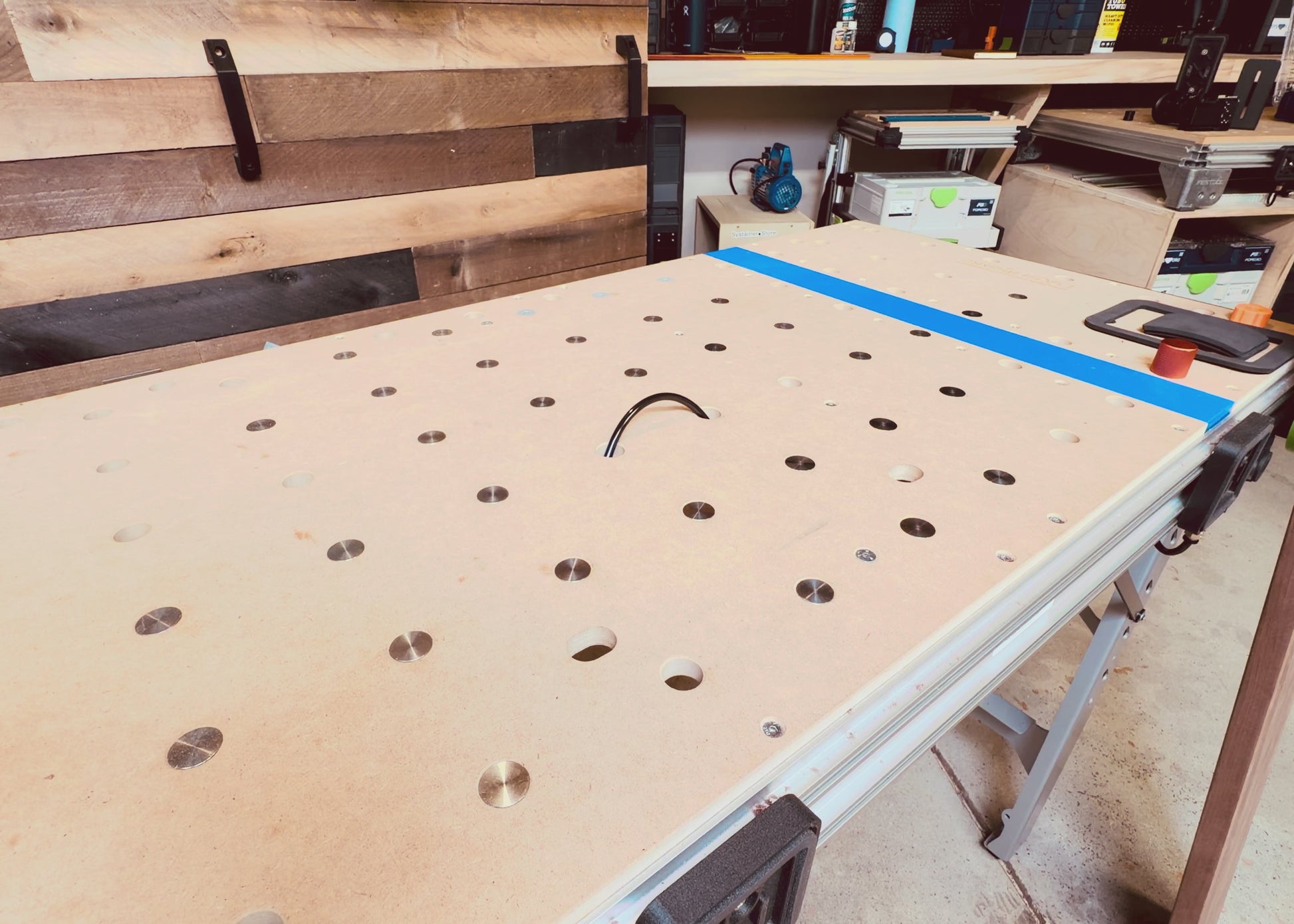

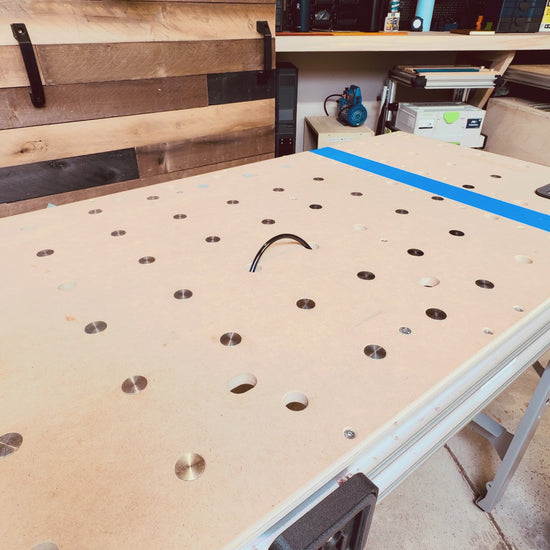

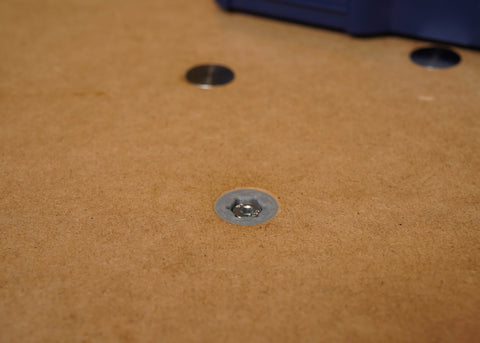

• Bench‑integrated anchor: Locates and anchors through the hole grid to keep toolpaths clear for routing, sanding, and assembly.

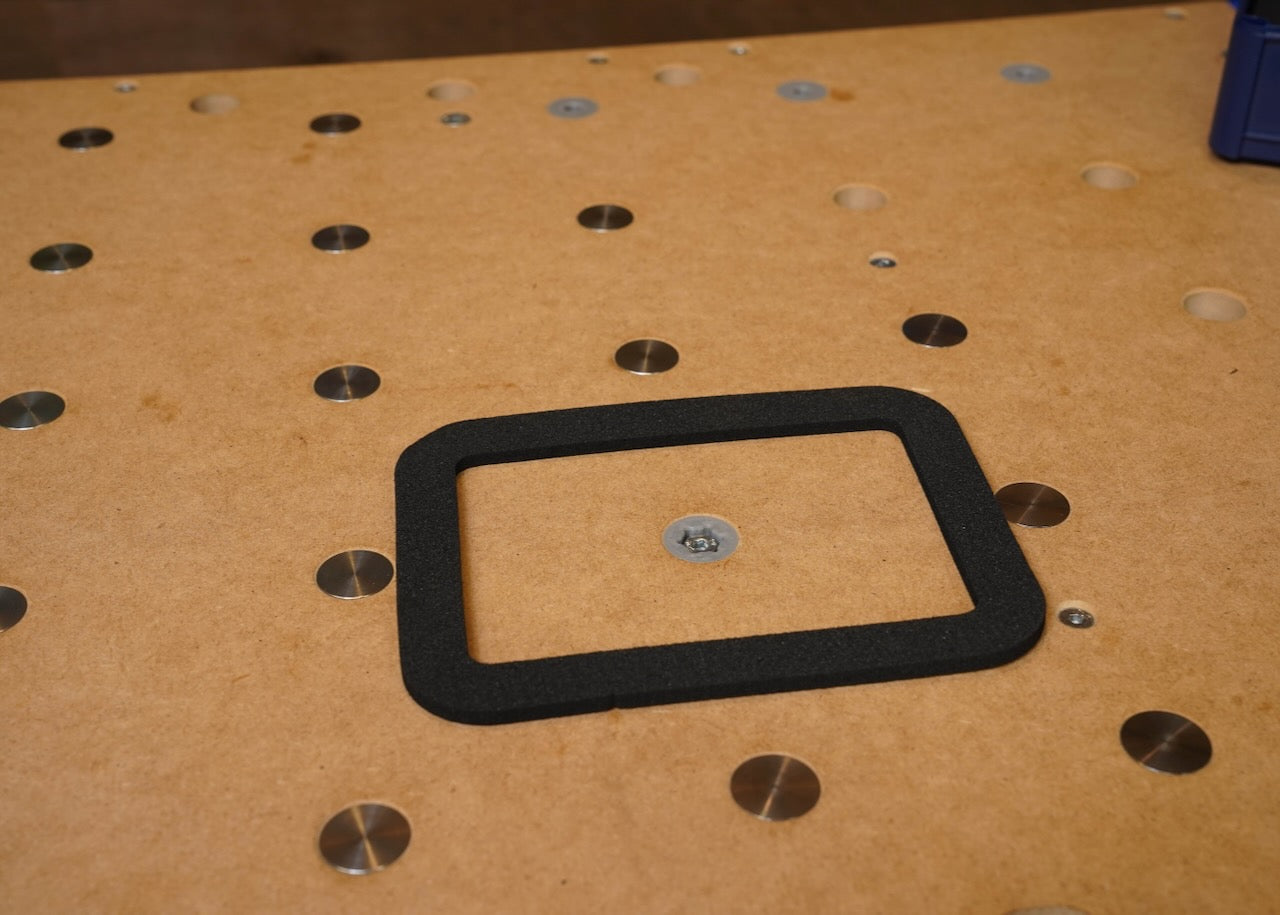

• One platform, three modes: AnchorDog mode (mechanical registration), Gasket mode (direct-to-surface vacuum seal), and Pod Integration mode (AnchorPod‑Edition pods).
• Hybrid architecture: A precision‑machined vacuum base paired with an additively manufactured interface for sealing and anchoring behavior.
• System‑first scalability: Designed to expand into the broader SYS‑GRP ecosystem as your setups grow.

The SYS‑GRP AnchorPod — FORG3D Edition builds the system out — AnchorPods, Edition pods, Argos, and a ready fitout.

Compatibility / Notes

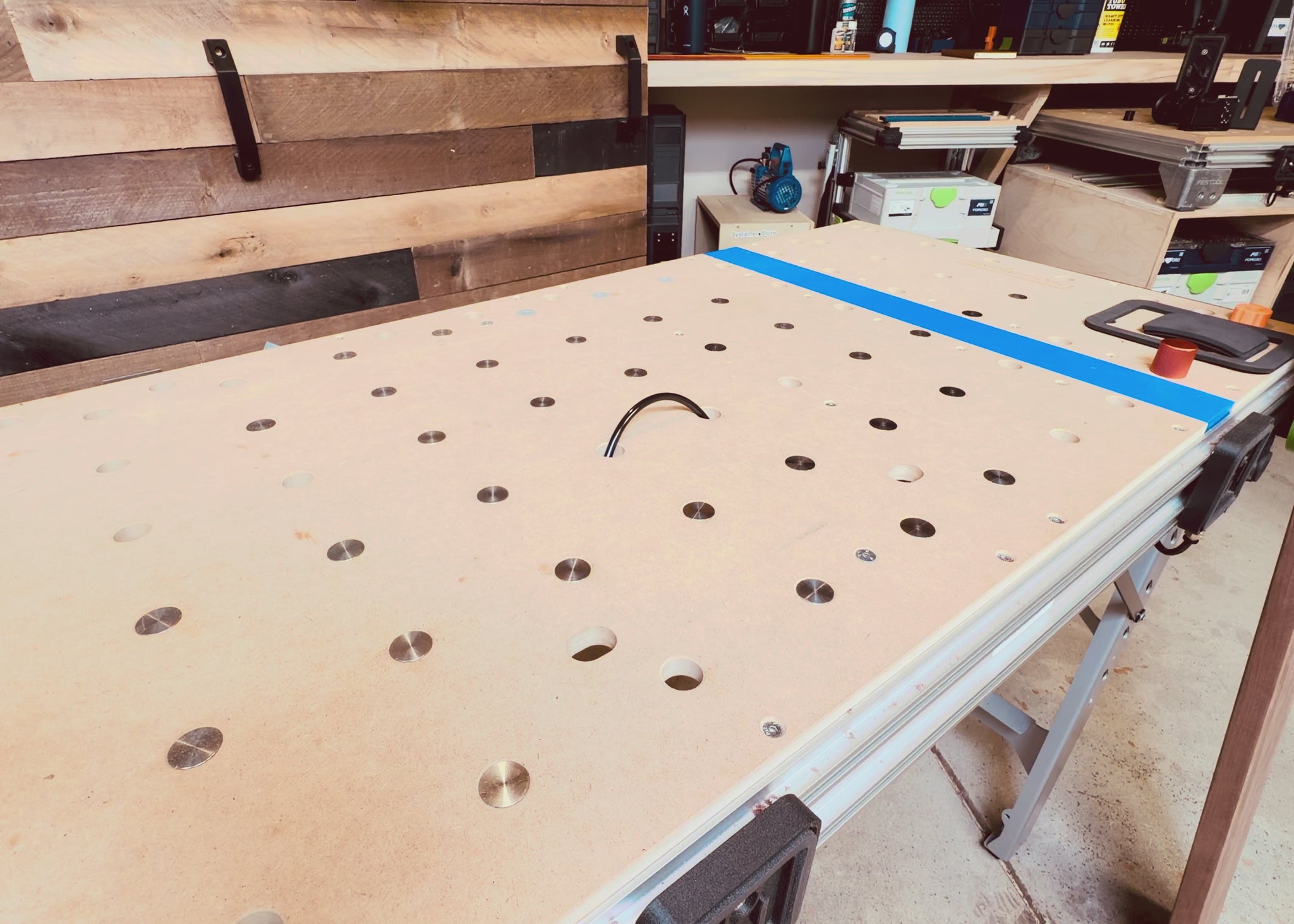

• Compatible with 20 mm (MFT‑style) and 3/4 in hole grids.
• Vacuum resists lift; when lateral load (shear) matters, use registration / mechanical stops.
• Vacuum performance depends on sealing quality and surface flatness.
• Need setup help or detailed usage guidance? See the AnchorPod Guide & FAQ.

System Links

• Part of the SYS‑GRP Workholding System.
• Engineering deep dives:
  • Deep Dive: AnchorPod
  • AnchorPod: Patent-Pending Workholding Without Limits
  • AnchorPod + The FORG3D Launch Edition: A New Era of Workholding

FAQs

What surfaces work best with AnchorPod? Smooth, flat, low‑porosity surfaces deliver the strongest seal and the most predictable holding. Highly porous, soft, or uneven tops can leak and reduce performance; if you’re working on a perforated or porous top, plan on sealing adjacent holes or using a spoilboard to improve the seal.

What vacuum sources are compatible? AnchorPod works with common vacuum workholding sources as long as you can maintain a stable seal and appropriate vacuum level for your material and contact area. For recommendations on pump types, fittings, and real‑world setup guidance, use the Vacuum Source Guide.

Do I need bench dogs for AnchorPod to work? No. AnchorPod provides vacuum down‑force on its own. Dogs are optional — they’re most useful for indexing, anti‑rotation, and mechanical stops when lateral load (shear) matters.

What if it won’t hold? Start with the basics: clean the gasket and work surface, verify the part is flat, and listen for leaks. If the surface is porous or the workpiece is warped, you may need a spoilboard, additional pods, or mechanical registration. Vacuum workholding resists lift; if you’re seeing slip, add a stop and reduce side‑loads.
