SYS-RLZ Installation Template

$14.00 USD Taxes & shipping calculated at checkout

Rail slides are only as straight as the holes behind them. The Installation Template registers your drill layout off an existing 32 mm system field, or off the cabinet face for a greenfield build — mark, drill, repeat, no measuring. Runt for a quick single slide, Ogre for a full multi-Systainer³ cabinet.

Variant
Modes
Installation · Layout
Manufactured
Laser cut
Integrates
32 mm system holes · cabinet fronts
Material
High-impact acrylic
Ships in 4–7 business days Engineered in Atlanta · Built for You

Rail slides are only as straight as the holes behind them. The SYS-RLZ Installation Template registers drill layout against your existing 32 mm system holes or directly off the cabinet front face, so the layout is decided before the bit touches wood.

Build Your System

Choose by the size of the install. Runt registers insets with a square you supply; Ogre builds squaring and spacing guides into the template itself.

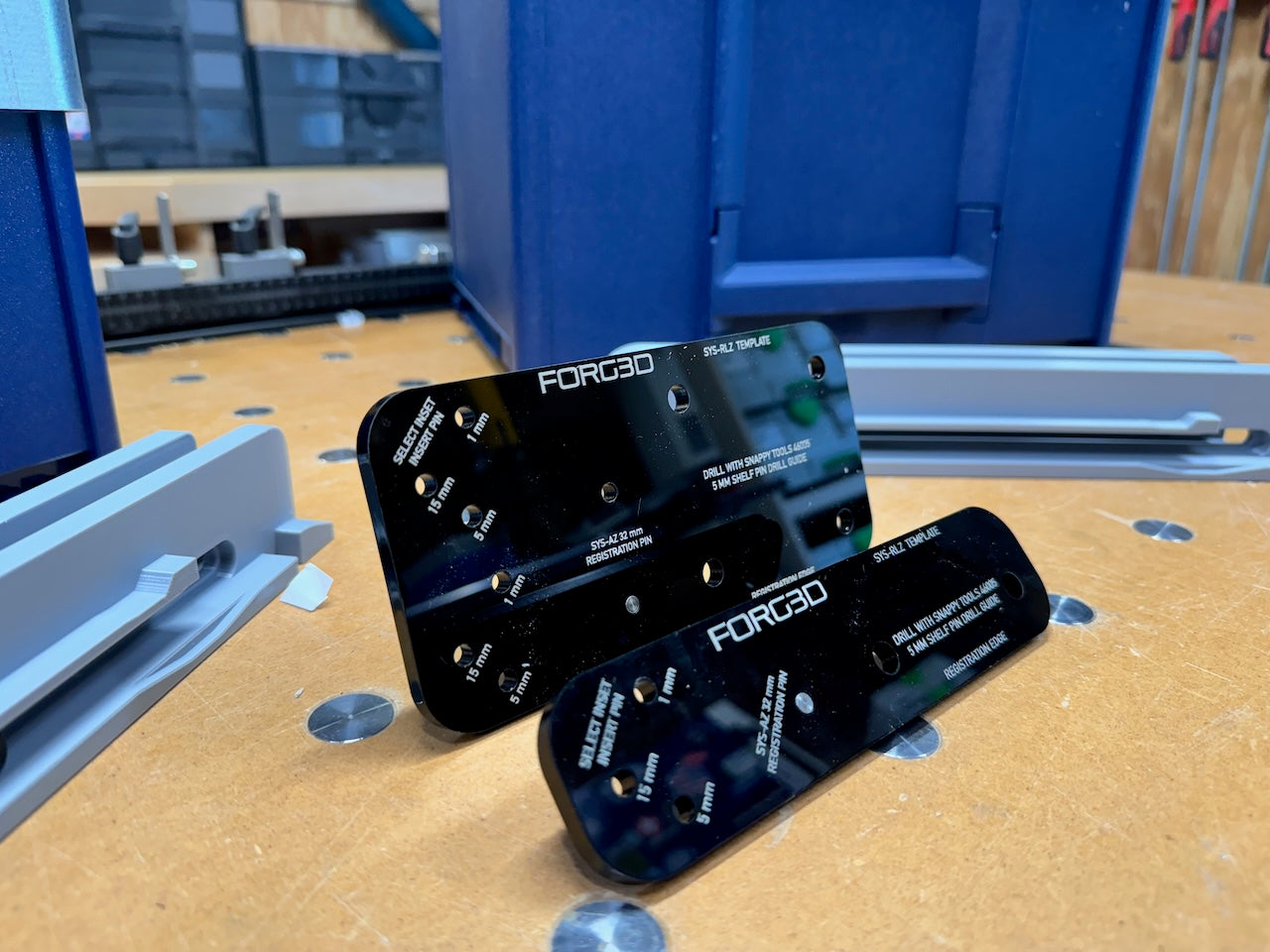

SYS-RLZ Installation Template — Runt

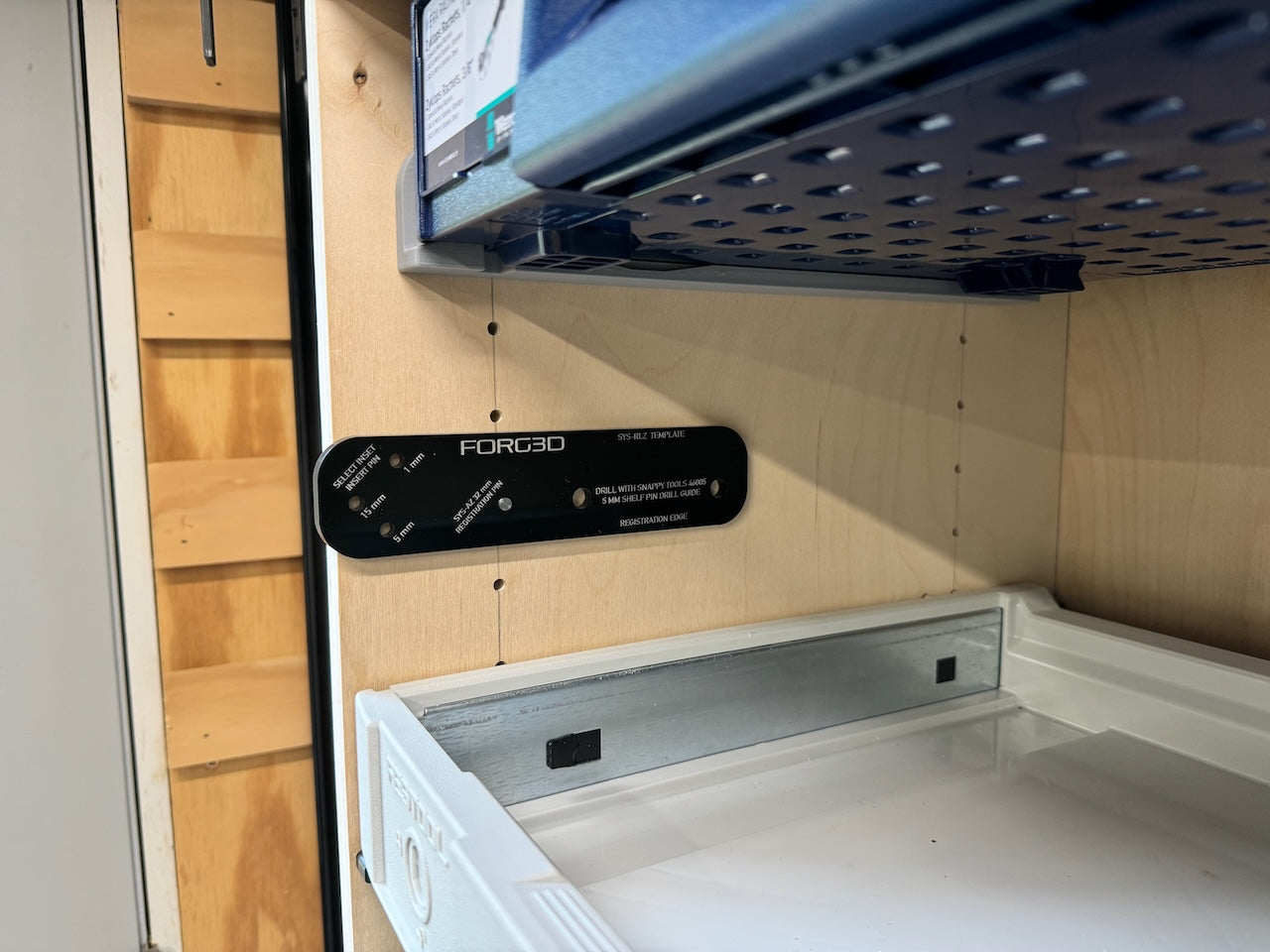

Quick single-install registration. Uses existing 32 mm system holes or the cabinet front face with a user-supplied square to locate correct insets (1 mm, 5 mm, 15 mm). The right choice for one or two rail slides.

  • (1) Precision-cut acrylic template
  • Required registration pins

SYS-RLZ Installation Template — Ogre

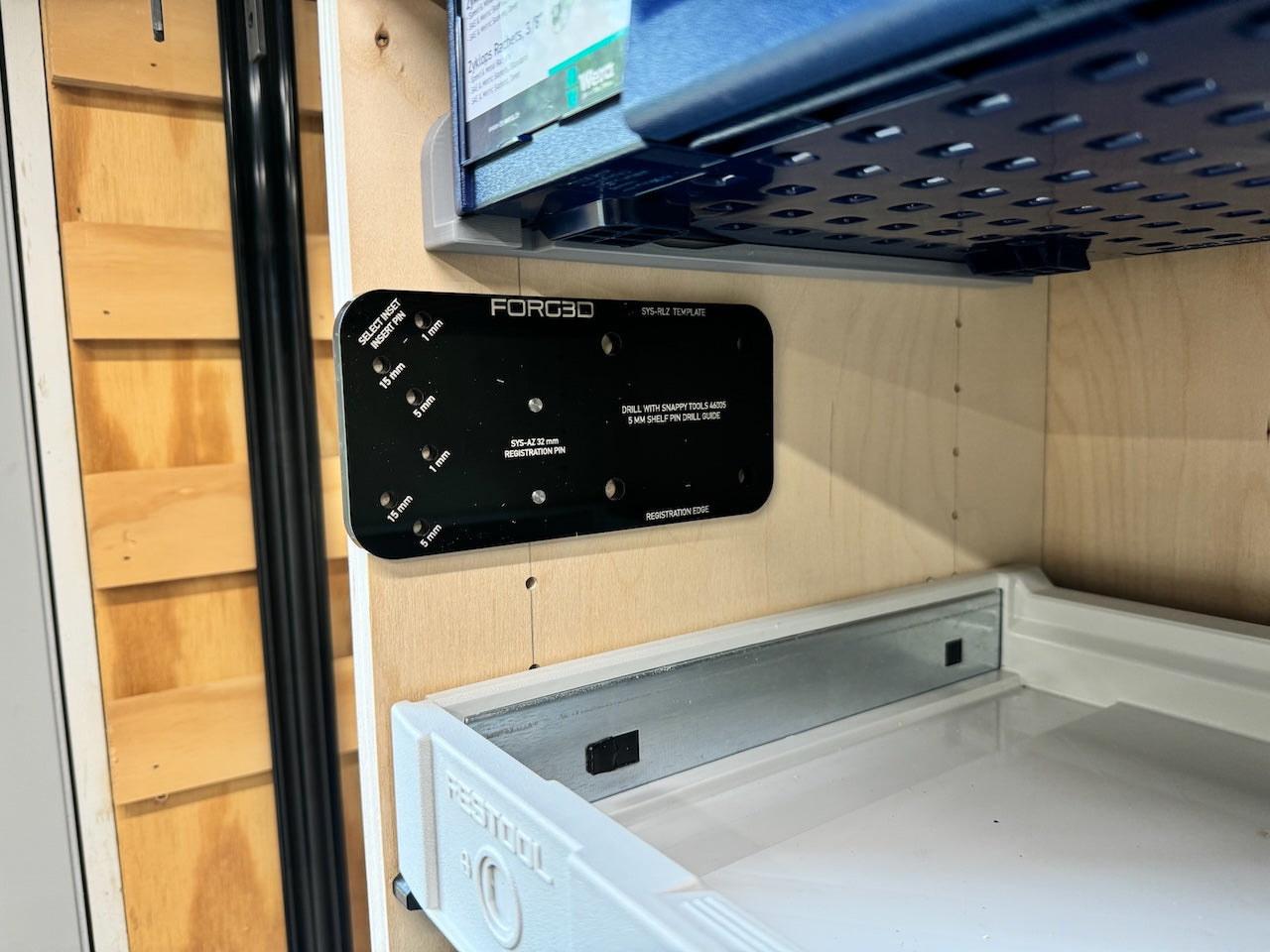

Full-featured registration and squaring in a single operation. Built-in squaring guides eliminate the need for a separate square; preset spacing guides minimize wasted cabinet space when installing multiple Systainer³ Organizers side by side.

  • (1) Precision-cut acrylic template with built-in squaring guides and preset spacing guides
  • Required registration pins
Key Features
  • Precision-cut acrylic: Each template is precision-cut for exact hole registration and ships with the required registration pins.
  • Two registration references: Locate off existing 32 mm system holes or directly off the cabinet front face.
  • Preset insets: Registers the correct rail slide insets (1 mm, 5 mm, 15 mm).
Compatibility & Notes
  • Use with Festool 5mm Centrotec Self-Centering Bit or Snappy Tools 46005 5mm Shelf Pin Drill Guide (not included).
  • Drill bits and guides not supplied.
  • SYS-RLZ installation instructions available in the product knowledge base.
System Links

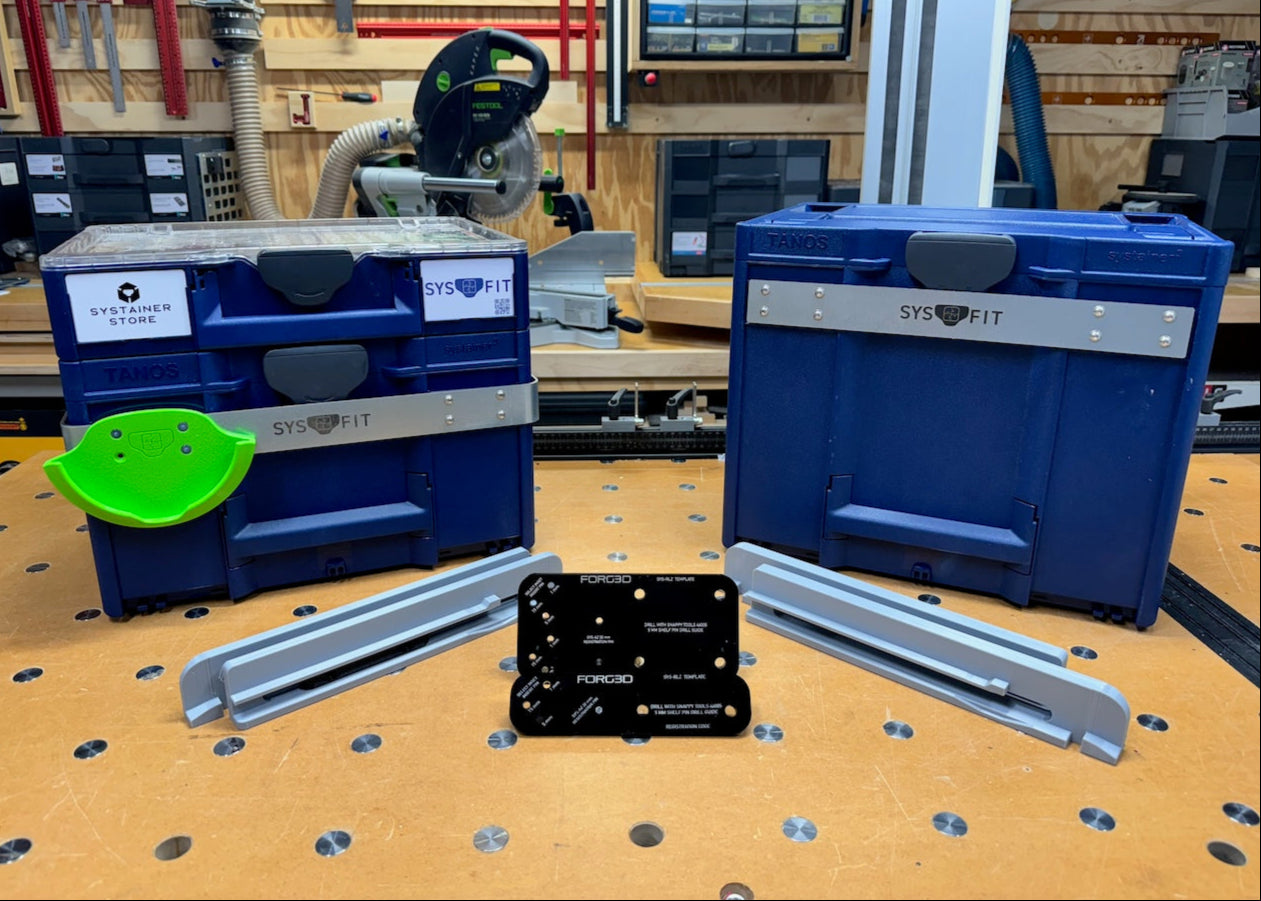

  • SYS-RLZ Rail Slide collection — rail slides, installation templates, and accessories

Your Workflow. Without Limits.

Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brett Wilie
Excellent Template….Makes life easier

I ordered the Ogre Installation Template from Forged 3D and put it to use yesterday in my shop on a newly built set of shop cabinets. I dimensioned the cabinets to fit Sys AZ drawers for my Systainers but wanted to combine the use of the SYS-RLZ (rails) from Forged 3D for several M 112 Systainers as well. The template made it fast and easy to drill the holes for mounting the rails. Well worth the few $$ for the template.

Thanks, Brett — really appreciate you sharing the detailed feedback! Glad to hear the Ogre Installation Template made your setup faster and cleaner. The combo of SYS-RLZ rails and Systainers really can elevate your organization and shop workflows. We’d love to see the finished setup — tag us @forg3d.store on Instagram!
