SYS-DTM Corso Bench Dogs

$20.00 USD Taxes & shipping calculated at checkout

Full-face registration on Cardo starts with small-face registration underneath it. Corso dogs are built to the spec Cardo depends on, and work just as well as everyday bench dogs anywhere in your shop.

Dog
Surface
20mm dog holes
Modes
Stop · Registration · Round-stock cradle
Manufactured
Machined
Integrates
Cardo Square · Cardo 320 / 640 · SYS-SRF
Material
6061 aluminum, orange anodized
Ships first week of December Engineered in Atlanta · Built for You

Full-face registration on Cardo starts with small-face registration underneath it. Corso dogs are built to the spec Cardo Square and the Cardo 320 / 640 bars depend on, and they work just as well as everyday bench dogs anywhere in your shop. Corso 11 and 16X set a stop just below the face of 12mm and 18–19mm stock; Corso V cradles round stock from 1/4" dowel to 1" conduit. 6061 aluminum, anodized FORG3D orange, sold in pairs.

Preorder: ships the first week of December.

Build Your System

Pick the height that matches your stock, or the V for round work.

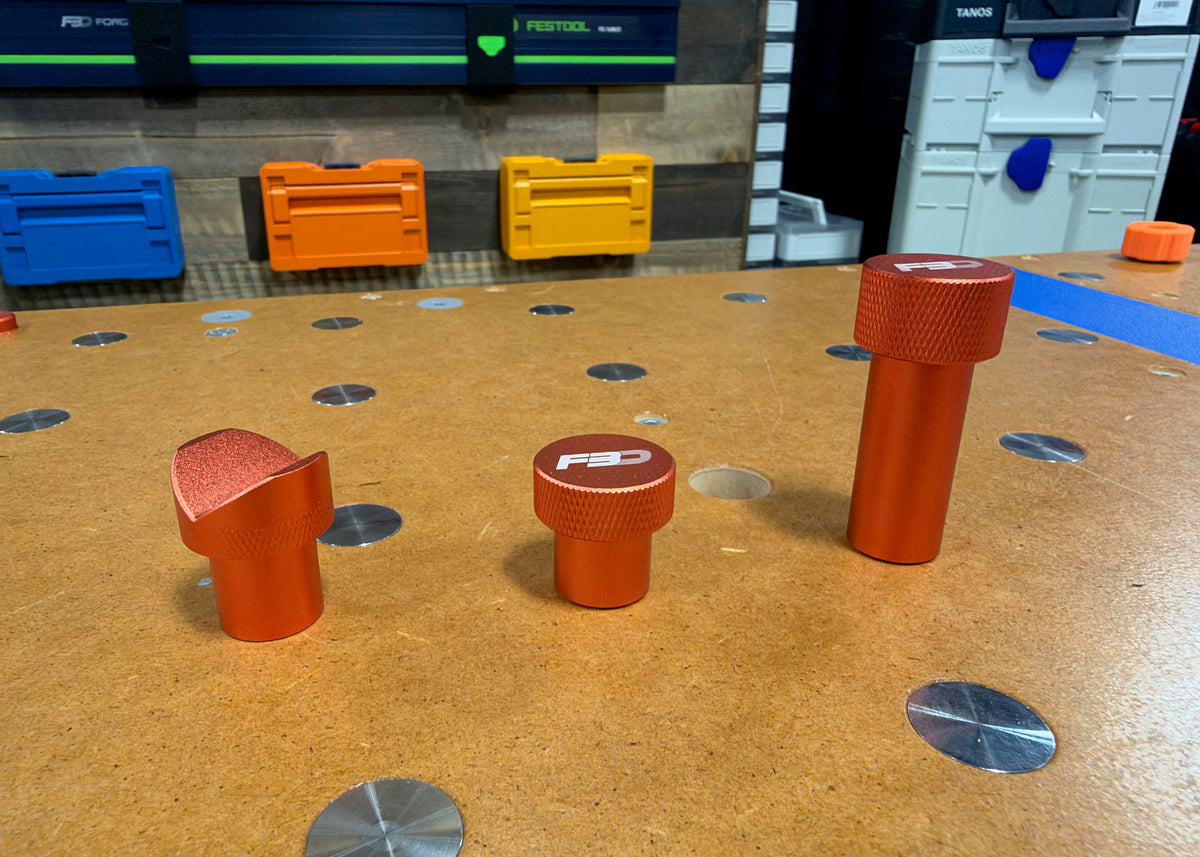

Corso 11 (pair) — Stands 11mm above the bench — the stop for 12mm stock. Flat top reference face.

Corso 16X (pair) — Stands 16mm above the bench — the stop for 18 and 19mm stock. The X marks its long shank, which passes through a Cardo body and into the bench hole below. Flat top reference face.

Corso V (pair) — A 110° groove cut across the full diameter of the head — a saddle, not a clamp — for dowel, rod, pipe and conduit from roughly 1/4" to 1".

Key Features
  • Heights sized to material: Each dog finishes just below the top face of the stock it stops, so nothing stands proud of the work.
  • Say the name, know the number: Corso dogs are named for how far they stand above the bench. Corso 11 stands 11mm; Corso 16X stands 16mm.
  • A saddle for round stock: Corso V's 110° full-diameter groove cradles round stock without clamping it.
  • Flat reference faces: Corso 11 and 16X carry a flat top face to register against.
  • Machined, not molded: 28mm heads, 6061 aluminum, anodized FORG3D orange.
  • Part of a system: Corso is the dog platform the Cardo system registers on. Corso 16X ships in both Cardo kits and works through a Cardo body.
Compatibility & Notes
  • Fits any 20mm dog hole: SYS-SRF surfaces, Festool MFT and MFT-style tops.
  • Corso dogs stop, register and cradle. They do not hold work down against a cutter and do not replace a vacuum pod or clamp.
  • Past about 1" diameter, round stock outgrows the Corso V head — use a dedicated V-block.
  • Corso Slot Grip, Slot Glide, Tack and Bore are part of the Cardo system and ship in Cardo kits.
  • Preorder: ships the first week of December.
FAQs
System Links

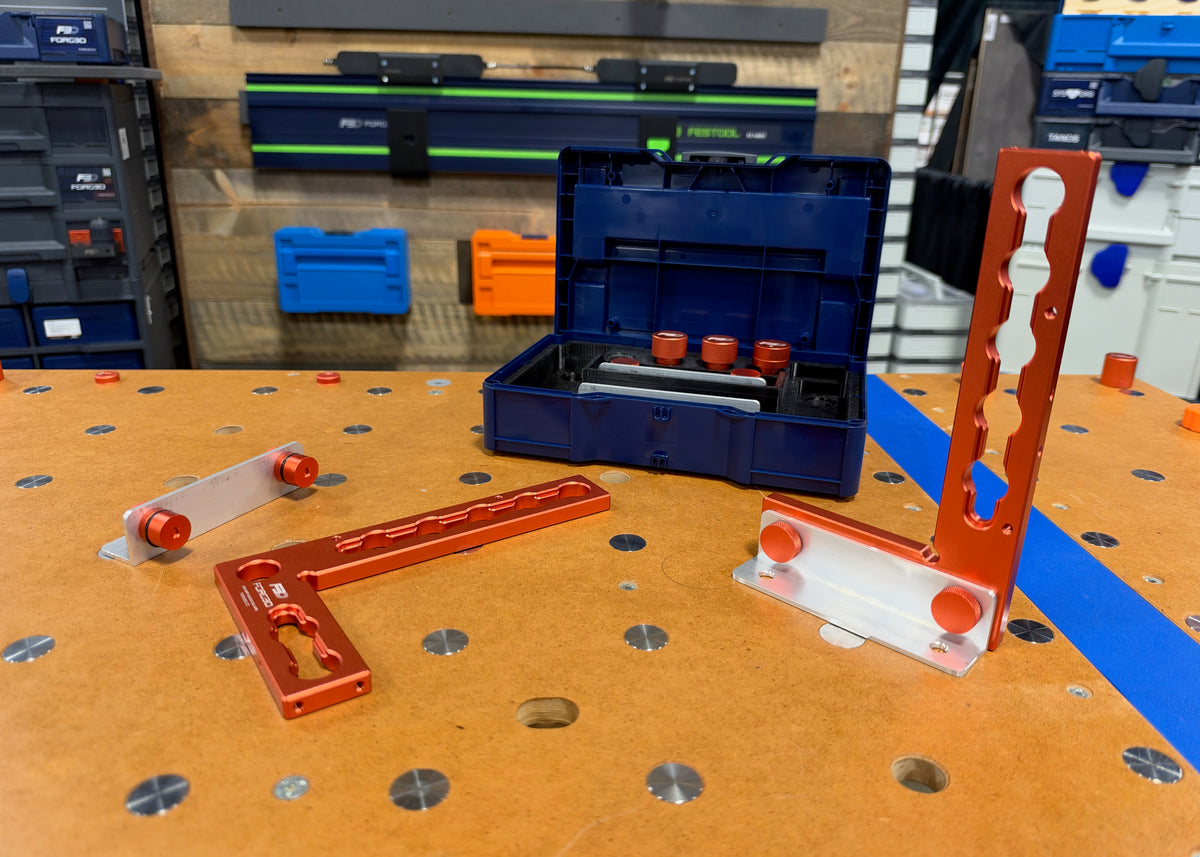

  • Cardo Square — FORG3D Edition

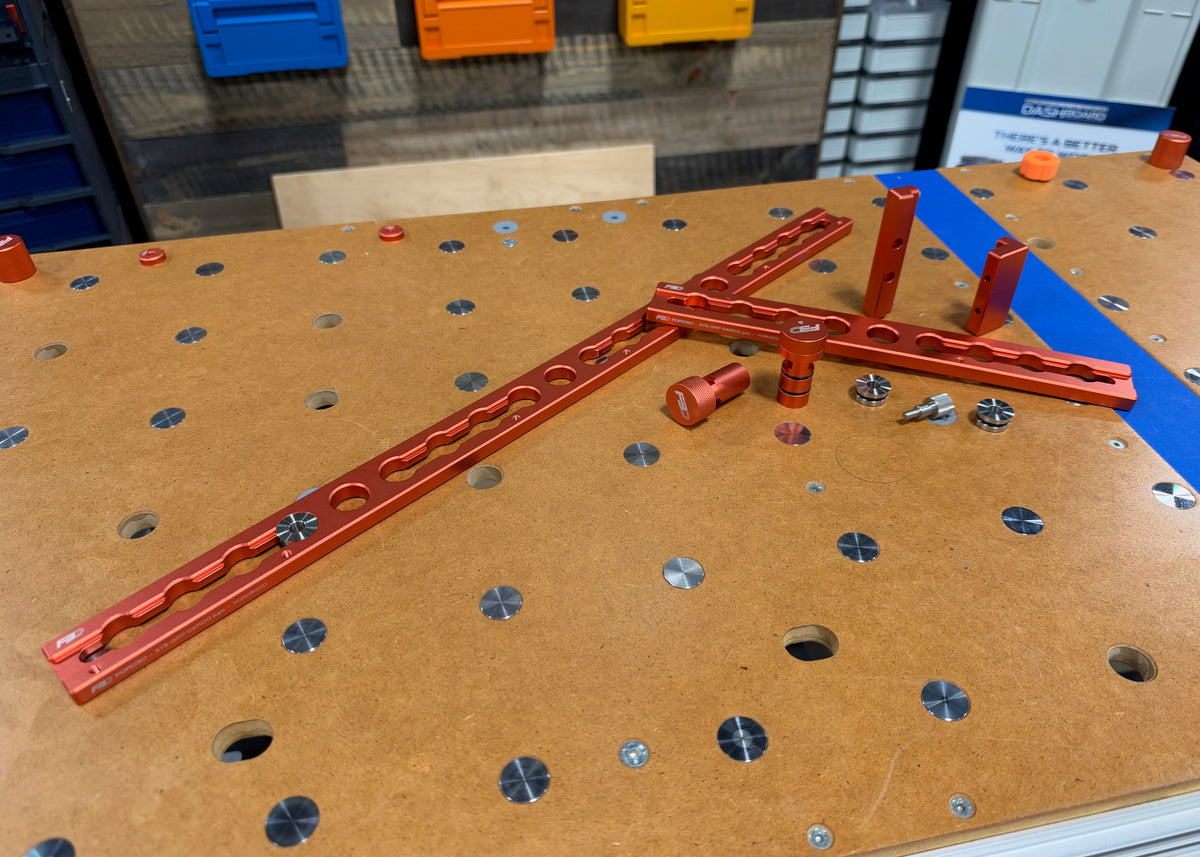

  • Cardo 320 / 640 Kit
