Narrow-Stock Workholding Set

SYS-GRP BenchGrip Akros — FORG3D Edition

$285.00 USD Taxes & shipping calculated at checkout

Narrow stock is where a square pod runs out of edge to grab. The Harpyie pod was built for it, holding face frames and rails down to 45 mm along their length, and Akros lets it spread its wings — four pods, fitout, and hardware staged in a Systainer³ S 76. Open it and work the edges.

Surface
20 mm MFT-style grid · 3/4 in · Aluminum extrusion
Modes
Horizontal · Vertical workholding
Manufactured
Additively manufactured
Integrates
Hub · Verso · Nexus
Material
Fiber-filled thermoplastic
Ships in 4–7 business days Engineered in Atlanta · Built for You

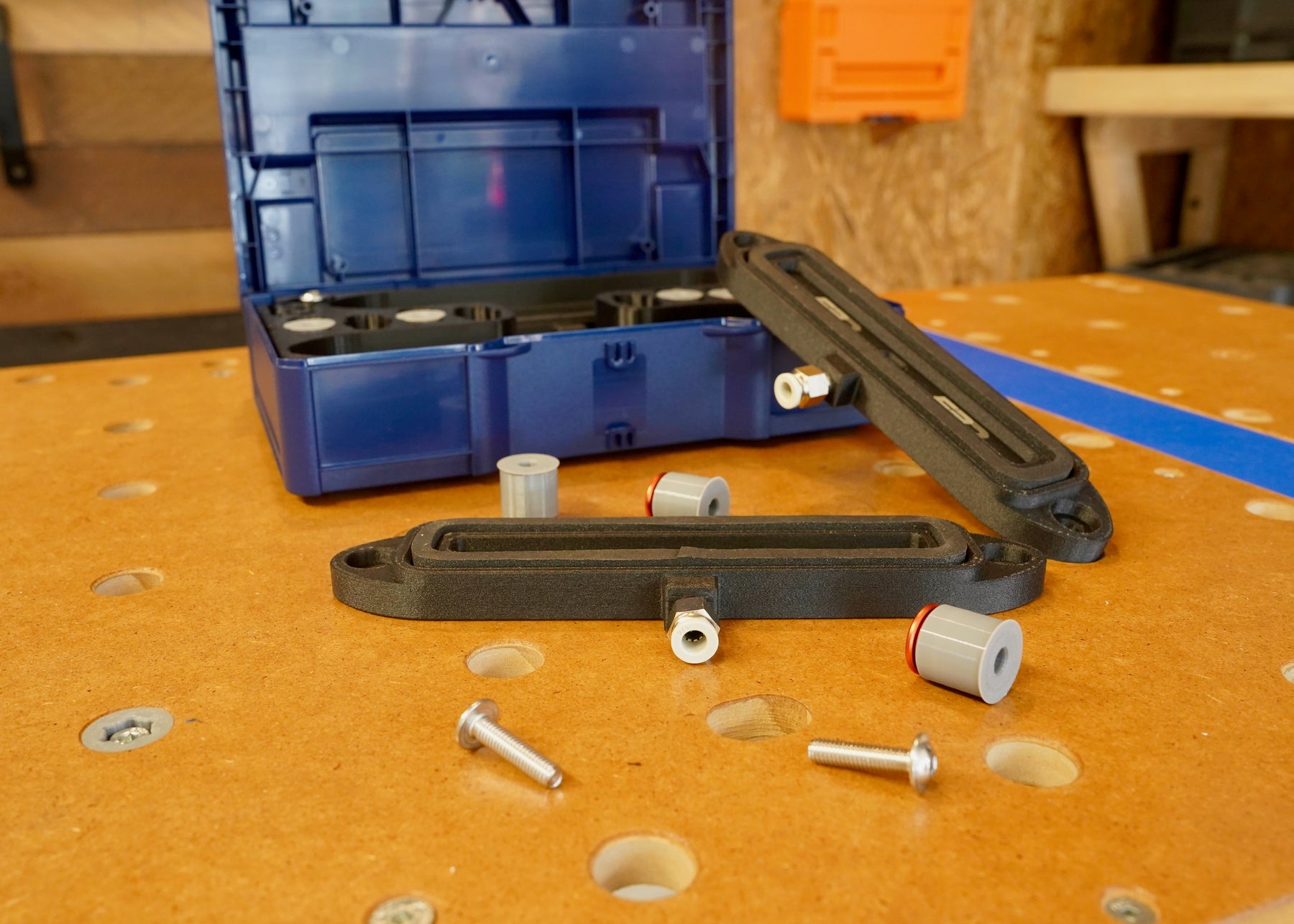

The BenchGrip Akros Set is built around one pod, the Harpyie Minimus, because narrow stock is its own problem: face frames, rails, and door stiles sit outside standard pod geometry, where a square pod gives point hold or overhangs thin material. Harpyie's elongated seal spans the length of the board instead. Like every BenchGrip FORG3D Edition set, Akros arrives resolved rather than as a parts list — four pods with the AnchorDogs, rail inserts, hardware, and tubing to run them, staged in a Systainer³ S 76.

Build Your System

BenchGrip Akros ships in one configuration: the narrow-stock set. It's the same Harpyie Minimus hold as the individual BenchGrip pods, curated to arrive complete in a Systainer³ S 76.

FORG3D Edition — Akros Configuration

Akros is built around the Harpyie Minimus, the elongated pod that holds narrow stock along its length. The set runs four pods with the AnchorDogs, rail inserts, and hardware to mount on dog holes or extrusion, and the whole kit deploys straight out of the case.

  • (4) Harpyie Minimus Vacuum Pods
  • (8) AnchorDogs — 20 mm
  • (8) M6 Rail Inserts
  • (1) SYS-FIT S 76 Akros fitout

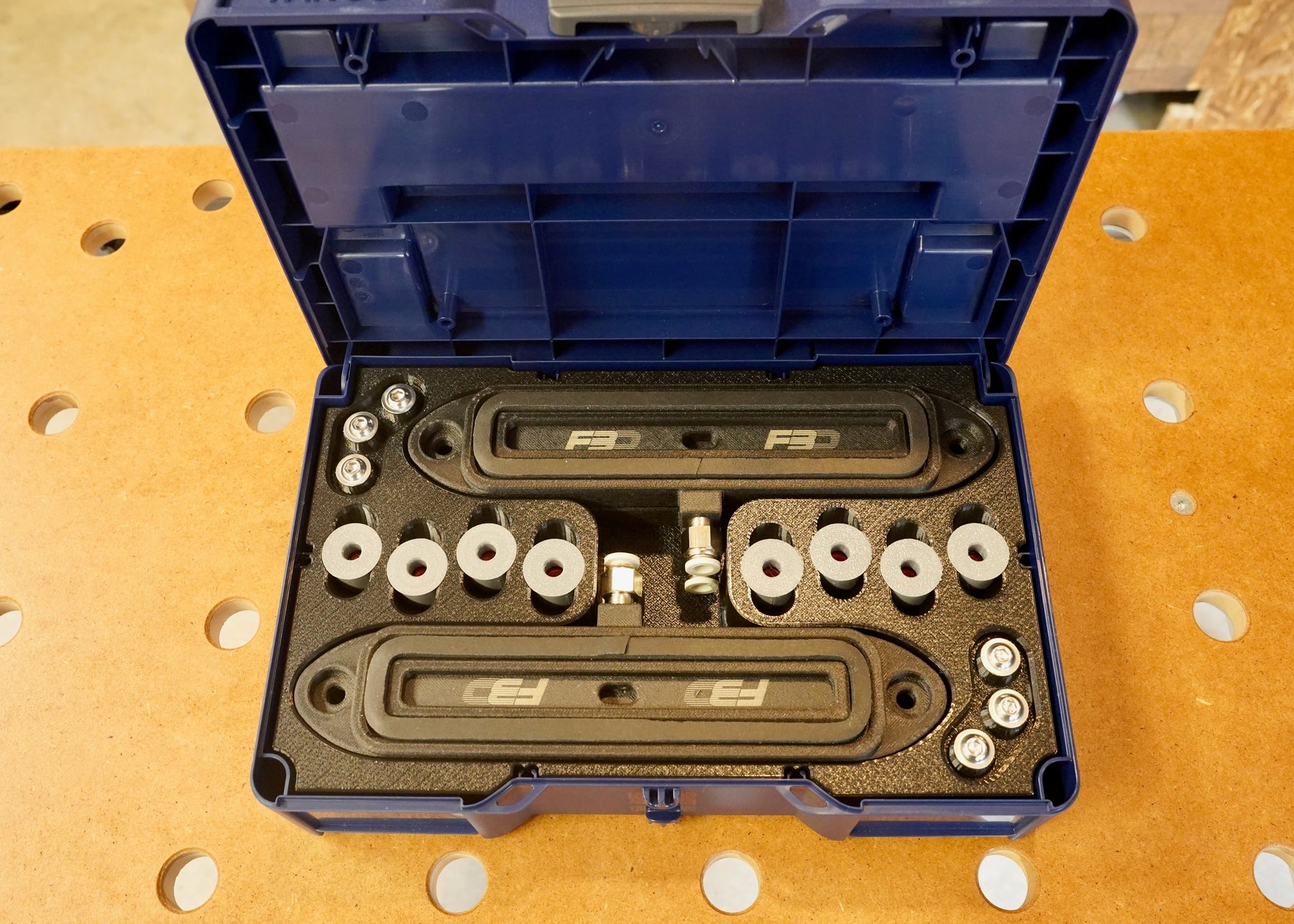

  • (1) FORG3D Edition Systainer³ S 76
  • (4) 1500 mm PU tubing lengths with required fittings
  • M6 mounting hardware: (8) M6 × 16 mm for the rail inserts, (8) M6 × 25 mm for the AnchorDogs
Key Features
  • Narrow-stock hold: Four Harpyie Minimus pods hold face frames, rails, and stock down to 45 mm (1.75 in) wide, with no clamps in the cut path.
  • Span, not point: The elongated sealing surface holds long, narrow stock along its length, so thin material stays stable without overhang.
  • 96 mm MFT-native: Pods drop onto the standard 20 mm and 3/4 in dog-hole grid with no adapters; each Harpyie Minimus spans three holes (215 mm).
  • Bench and rail hardware included: Eight AnchorDogs and eight M6 rail inserts cover dog-hole and extrusion mounting, with M6 × 16 mm bolts for the rail inserts and M6 × 25 mm for the AnchorDogs.
  • Dual-orientation: Every pod works flat on the bench or vertically on a bench, cabinet, or fixture edge.

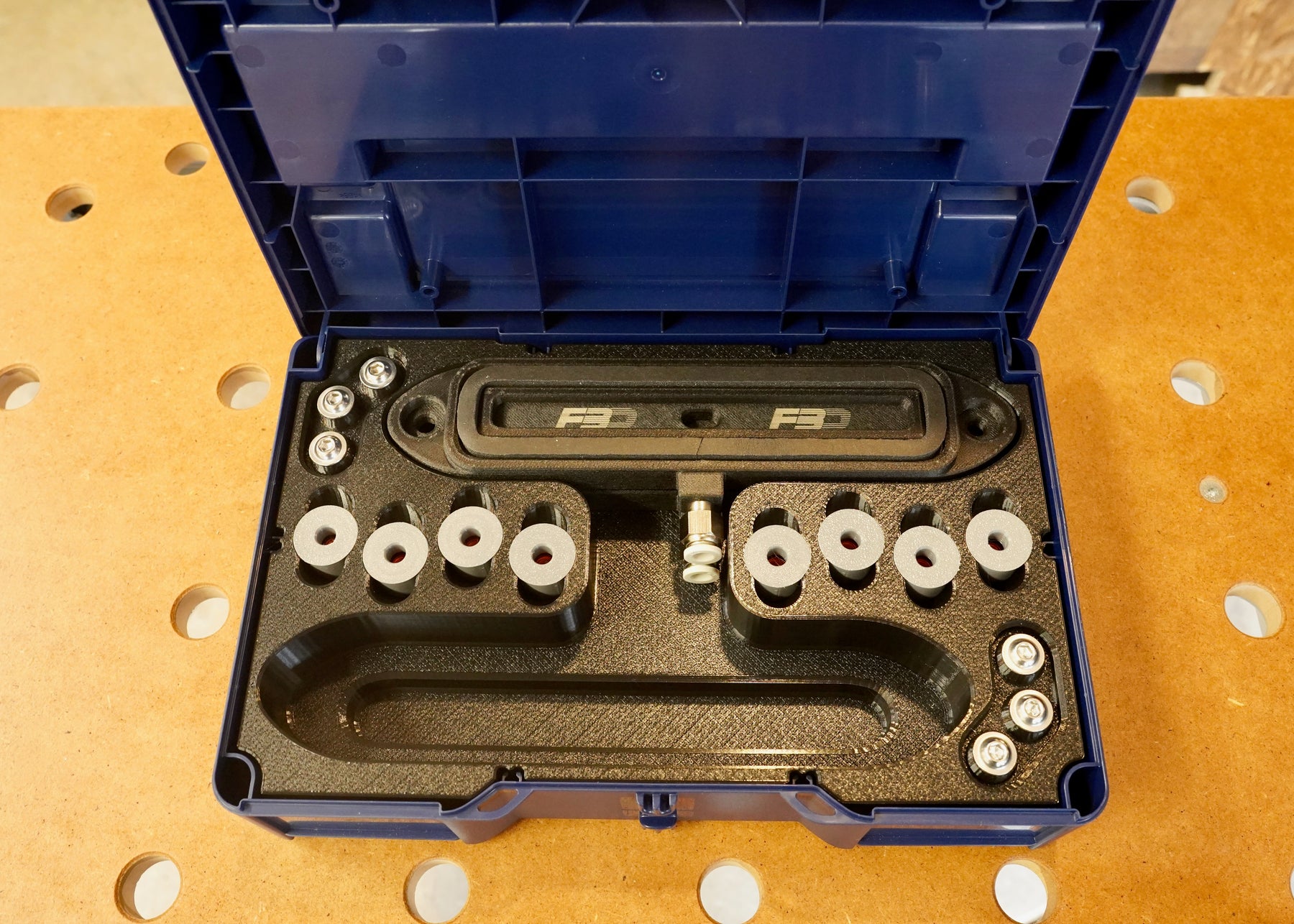

  • Mobile, and exact: The S 76 Harpyie fitout gives every pod, insert, and fitting a fixed home, so the whole system travels as one case and each piece lands back in the same place — grab-and-go on the jobsite, repeatable on the bench.
Compatibility & Notes
  • Vacuum pump not included — compatible with budget vacuum pumps, VacuPress Compact 150 and larger, and Grabo Pro-Lifter / DeWalt Grabo (with the SYS-GRP Grabo Pro Adapter Kit)
  • MFT-style benches on the 96 mm dog-hole pattern, in 20 mm or 3/4 in holes
  • Built for face frames, rails, door stiles, and narrow stock down to 45 mm (1.75 in); Harpyie Minimus fits stock as short as 175 mm (6.875 in)
  • Pairs with SYS-GRP AnchorDogs for combined mechanical clamping and vacuum hold
  • For wider face frames and door components, the larger Harpyie Maximus pod is sold separately
System Links
  • Ships with a Systainer³ S 76 and the Harpyie fitout, available directly from FORG3D.
  • Part of the SYS-GRP Workholding System.
  • Runs the same pod as the SYS-GRP BenchGrip Harpyie Vacuum Pods: add Harpyie Minimus or Maximus pods to grow the set.
  • Compare the curated sets: SYS-GRP BenchGrip — FORG3D Edition (Verso, Verso Dash, Max).
