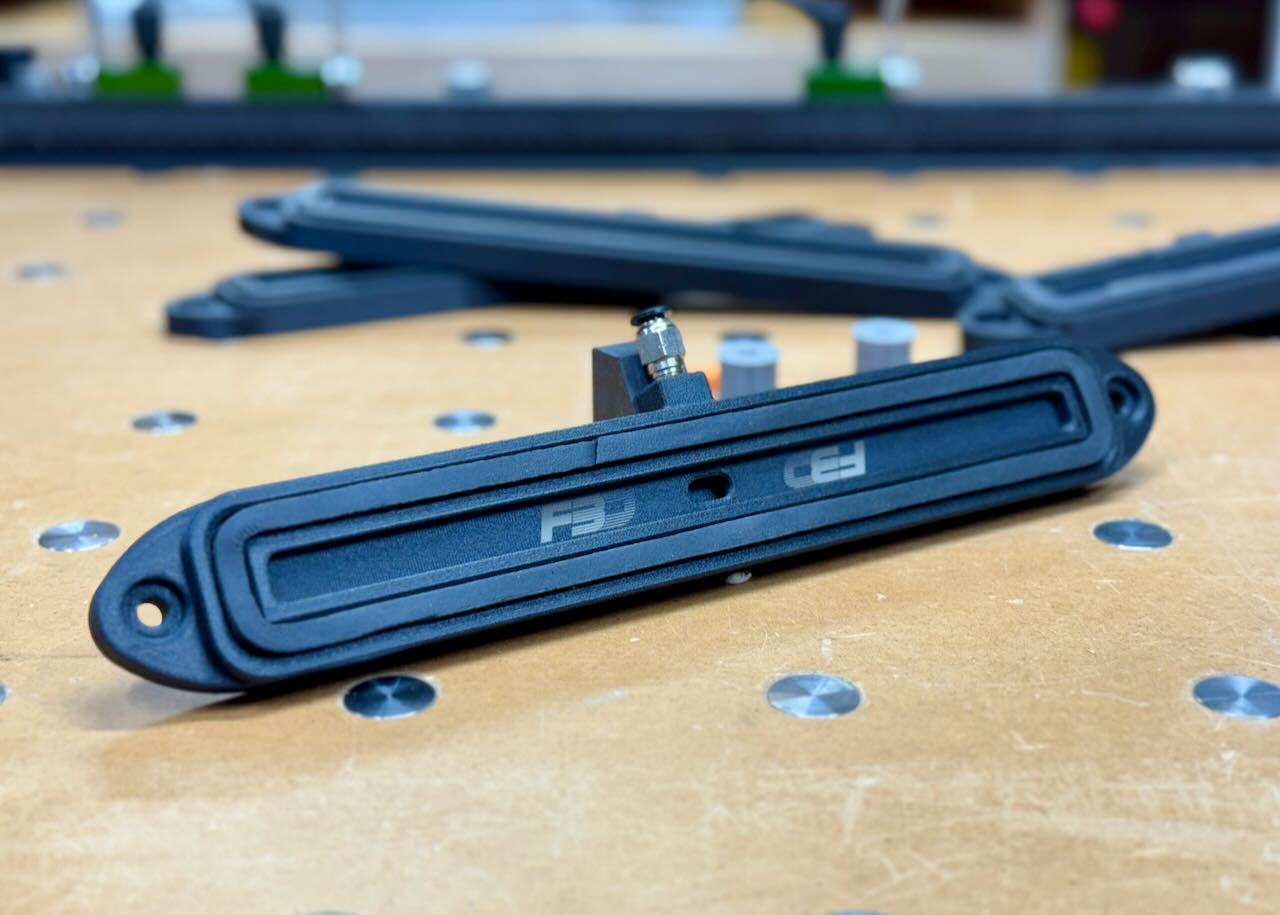

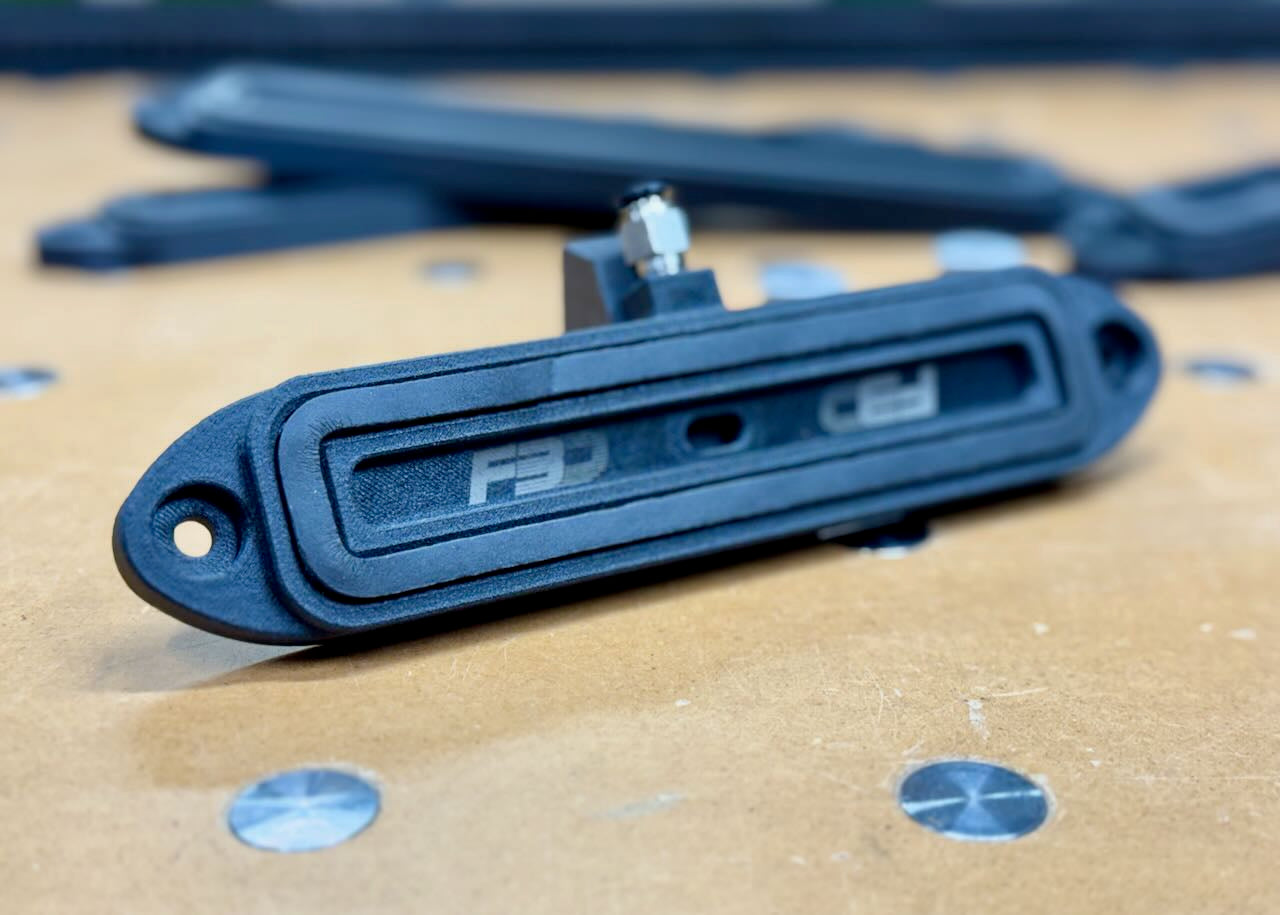

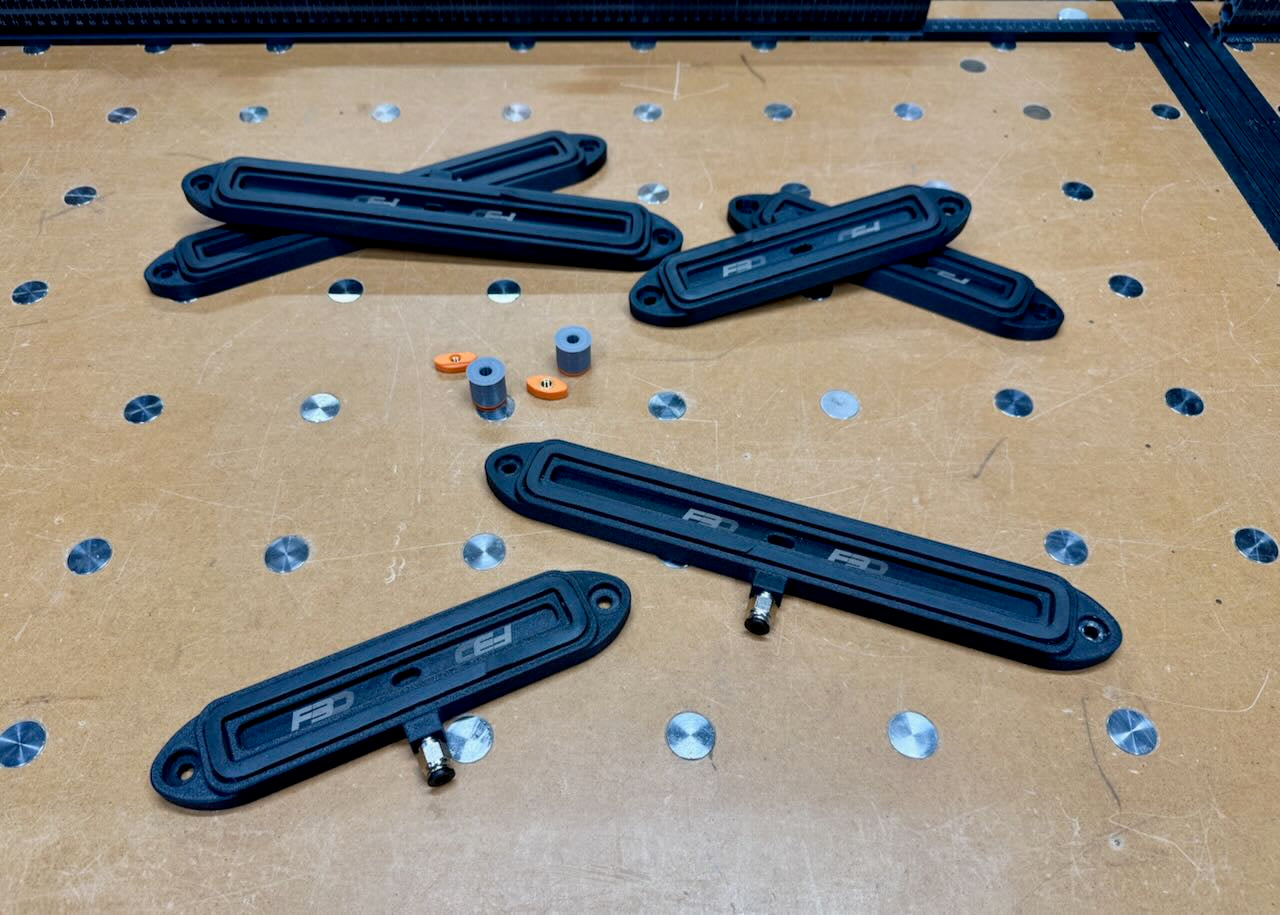

SYS-GRP - Bench Grip Harpyie Vacuum Pods

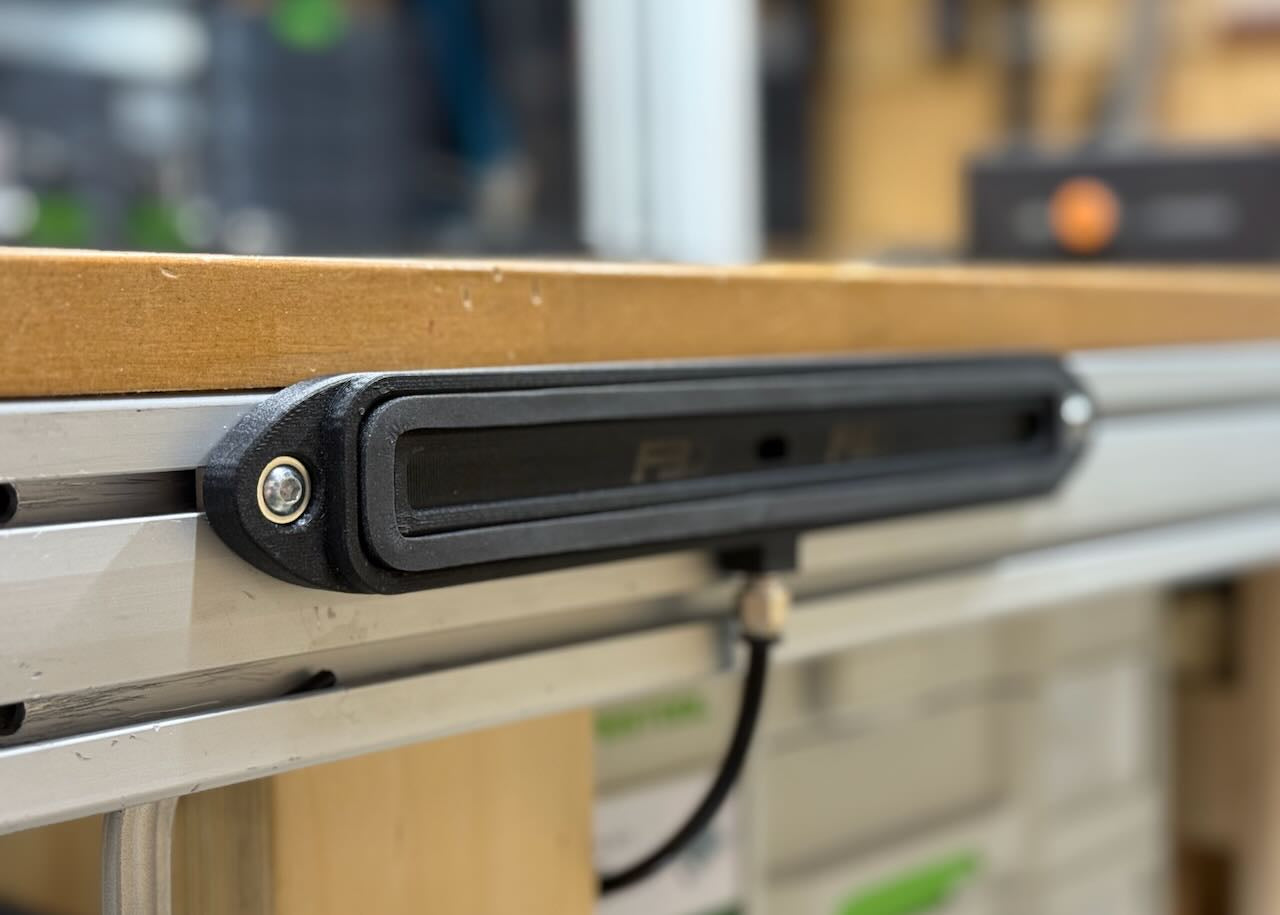

Our SYS-GRP - Bench Grip Harpyie Vacuum Pods are our solution for quick and easy face frame or narrow stock work-holding can be partnered with our Anchor Dog clamping bench dogs (available separately) for use with any MFT-style workbench , leveraging the standard 96 mm dog hole pattern. Alternatively, it can be secured to the side of a bench for vertical applications with the included rail inserts, accommodating stock as narrow as 45 mm (1.75 in wide).

Harpyie Minimus: Ideal for smaller workpieces or when paired with multiple SYS-GRP Bench Grip Vacuum Pods. This pod mounts across three (3) 96 mm dog holes, with a total length of 215 mm, and will fit stock as short as 175 mm (6.875 in) long.

Harpyie Maximus: Designed for longer workpieces or greater work-holding capacity. This pod mounts across four (4) 96 mm dog holes, with a total length of 312 mm, and will accommodate stock as short as 270 mm (10.625 in) long.

Includes:

• SYS-GRP Bench Grip Harpyie Vacuum Pod
• (2) M6 x 20mm Flanged Button Head
• (2) SYS-GRP Rail Inserts (for selected extrusion profile)

Our SYS-GRP Bench Grip Vacuum Pods can be used with any commercially available vacuum pump typically found in a shop setting. We have tested this with various budget pumps, VacuPress Compact 150 and higher and the Grabo Pro-Lifter. When paired with our Grabo Pro Adapter Kit and Grabo Pro-Lifter, you have a mobile solution suitable for job sites or when you need to bring the tool to the workpiece instead of the workpiece to the tool.

Additional customization options and flexibility are built into our pods using standard 1/4” push-to-connect fittings. We offer a variety of fittings in our store to address most common needs and applications. For customization inquiries, feel free to reach out or check out our SYS-GRP Launch Blog and video, where we walk through a simple setup all the way to our own ‘showcase’ build used in the shop.

Also check out our different SYS-GRP accessories such as our Anchor Dogs that have been designed to work with our Bench Grip vacuum pods.
